Ethernet, Fibre Channel, OTN, SDH/SONET, PDH/DSn, Datacom and G.703 Testing

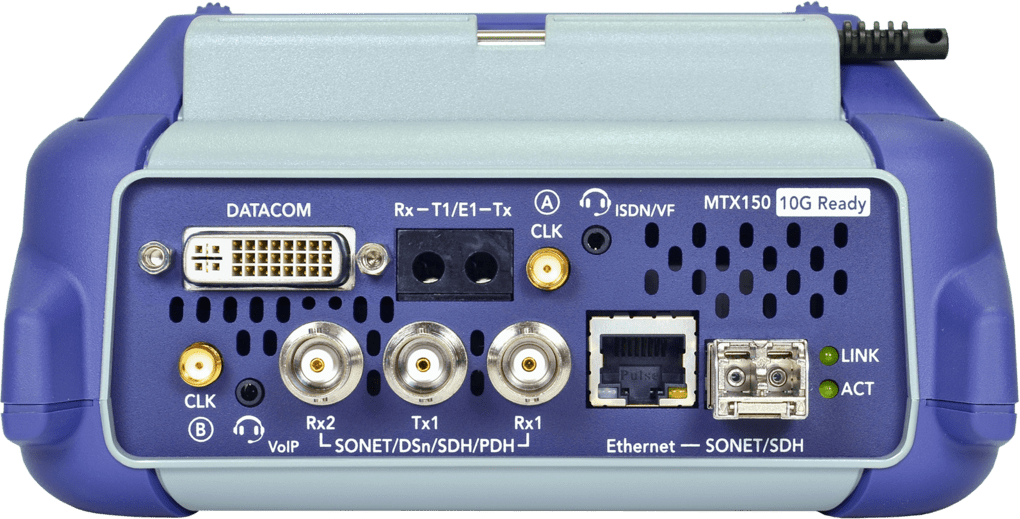

SFP Optical Interface for 100/1000Base-X, 4/2/1GFC, OTU1, STM16/4/1, STS48/12/3/1
RJ45 for 10/100/1000Base-T
BNC (75Ω unbalanced) for E1, E2, E3, E4, DS1, DS3, STM1, STM0, STS1 and STS3
RJ48 (120Ω balanced) for DS1, E1 and G.703 64k Codirectional
Datacom interface (DVI) for RS232 async, RS232/V.24 sync, X.21, V.35 and RS449/ V.36 (422/423), with DTE, DCE and Monitor modes
Ethernet
Throughput, BERT, IPv4/IPv6, Loopbacks, NetWiz, Ping, trace route, Scan, L2CP Transparency, Errors, Alarms, Events, Delay, Test Profile Auto Scripting/Sequencer
RFC2544 Throughput, latency, frame loss and back to back tests
V-SAM test suite compliant with ITU-T Y.1564 standard
Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB, and PPPoE support
8 Streams, 3 VLAN, 3 MPLS, TCP/UDP
Layer 4+ test suite: V-TEST (speed test), V-FTP, RFC6349 V-PERF upload & download tests
PCAP packet capture
SyncE with ESMC/SSM and Wander Measurement
Fibre Channel
Storage Area Networks (SAN) testing
Throughput, BERT, Loopback, SDT, Errors, Alarms, Events, Delay
RFC2544: Throughput, latency, frame loss, back to back tests
OTN, SDH, SONET, PDH, DSn & Datacom
Advanced OTN, SDH/SONET, PDH/DSn test payload mapping and multiplexing
Auto Configuration for TDM interface type, bit rate, line coding framing and test pattern
Bit Error and Performance Analysis
Overhead Monitoring and Byte decoding
Service Disruption Time (SDT) and Automatic Protection Switching (APS)
Round Trip Delay (RTD) on all TDM interfaces and payload mappings
Tandem Connection Monitoring
Pulse Mask Analysis at E1, E3 and DS1, DS3
VF drop/insert via headset, tone generation and measurement
G.703 64k Codirectional and Serial Datacom interfaces
Fiber Optics Tools (Optional)
OTDR Viewer with V-Scan Optical Link Mapper function, compatible with OPX-BOXe OTDR (wireless or wired)
Fiber Inspection Scope and analysis via USB OTG
OPM via USB OTG
