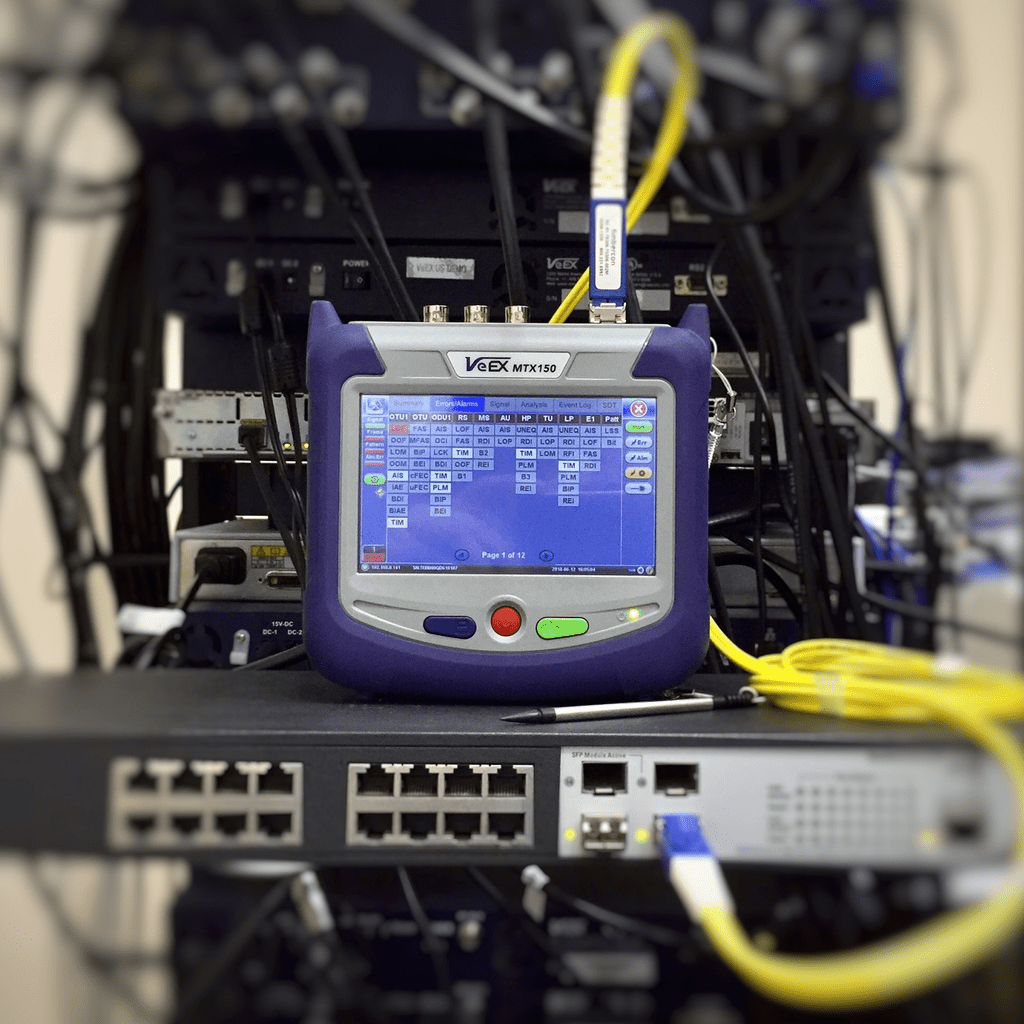

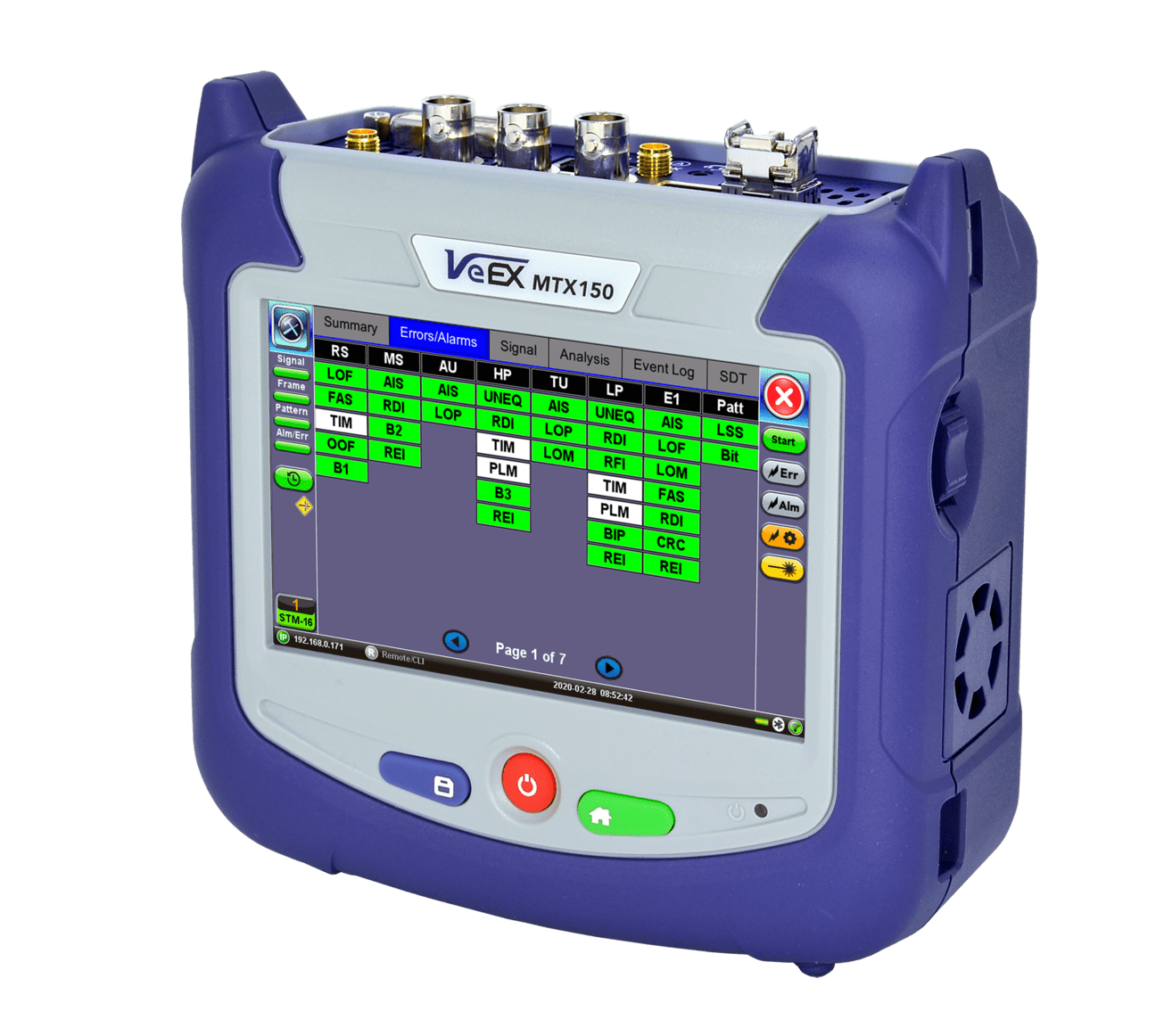

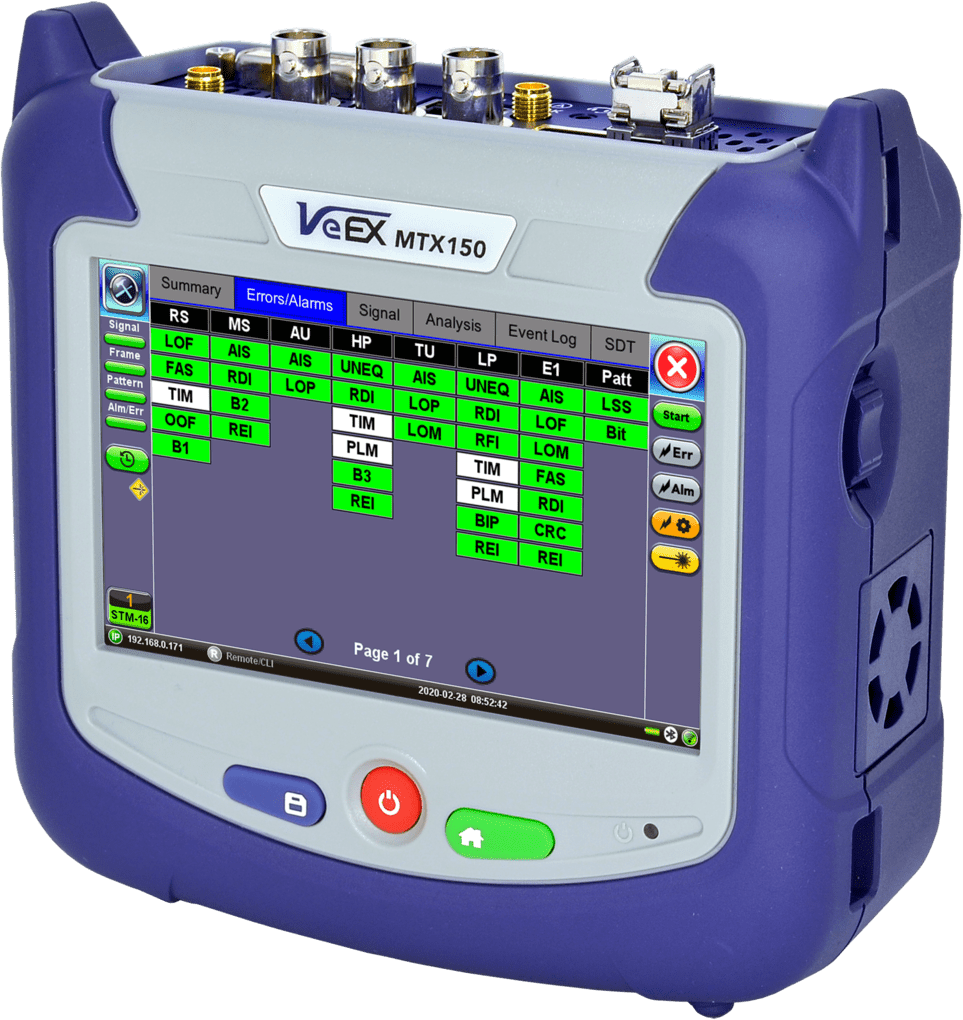

Multi-service Installation & Maintenance Test Set - VeEX MTX150

The MTX150 is a fully integrated and self-contained multi-service test solution for OTN, SDH, SONET, PDH, DSn, Ethernet, SyncE, Mobile Backhaul, and Fibre Channel (SAN). This all-in-one, rugged and ultra-portable field handheld test set can be configured with interfaces and technologies required by field technicians to install, verify, maintain and troubleshoot Transport, Metro, Access communication links and services, including legacy applications.

Contact Now

Thông tin chi tiết sản phẩm

Đặc tính

Optimized for field technicians installing, verifying, troubleshooting and maintaining Transport, Carrier Ethernet, Metro and Storage Area and legacy Networks, as well as fiber, backhaul, microwave and datacom links
Robust, handheld chassis packed with powerful and flexible features for demanding environments and test conditions
Flexible hardware configuration to meet each application’s requirements and reduce CAPEX
Field upgradeable licenses, including new 10Gbps options, to optimize OPEX
Full support for legacy PDH/DSn interfaces with standard connectors (no adapters required)
Compatible with VeSion® R-Server Asset Management service.
Test set connectivity via micro-B USB and optional built-in Wi-Fi and Bluetooth® wireless interfaces; USB-A, 10/100Base-T and 3G cellular are also available via OTG cables
Remote access and control via Web Browser, VNC® client and ReVeal PC software. Compatible with VeEX EZ Remote cloud services.
User defined test profiles and thresholds enable fast, efficient and consistent turn-up of services
Fast and efficient test result transfer to USB memory stick
New larger Li-Ion battery pack for extended field testing autonomy

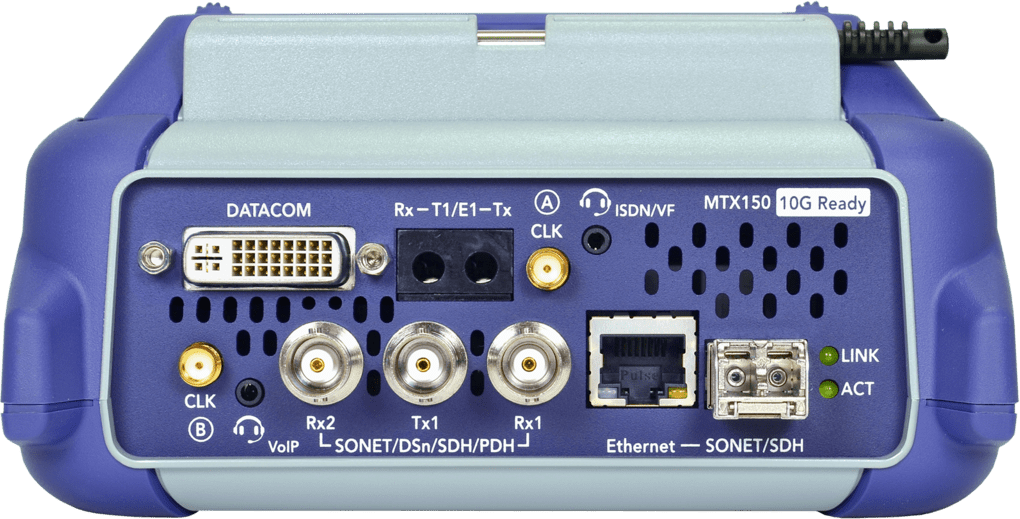

Note: New MTX150 10G-capable hardware (Nov. 2020) can be identified by a 10G Ready label on the connector panel

Test Interfaces
Ports	Technology	Interfaces
SFP+/SFP	Ethernet Fibre Channel SDH SONET IEEE® C37.94	10GBASE-X, 1000BASE-X, 100BASE-FX 4G, 2G, 1G FC STM-64/16/4/1 OC-192/48/12/3/1 64 to 768 kbps
RJ45	Ethernet	10/100/1000BASE-T
BNC	SDH SONET PDH DSn	STM-1, STM-0 STS-3, STS-1 E4, E3, E2, E1 T3 (DS3)
RJ48/Bantam	PDH DSn	E1, 64k Codirectional T1 (DS1)
DVI	Datacom	RS232 async, RS232/V.24 sync, X.21, V.35, RS449/V.36 (422/423) DTE, DCE, Monitor
SMA (2)	External TX Clock and Measurement Reference	1.544 MHz, 2.048 MHz, 10 MHz 1.544 Mbps, 2.048 Mbps 1PPS
2.5mm TRS Jack (2)	ISDN, PDH/DSn VF VoIP	Headset mic and speaker

Ethernet, Fibre Channel, , SDH/SONET, PDH/DSn, Datacom and G.703 Testing
SFP+ Optical Interface for 100/1000BASE-X, 10GBASE-X, 1/2/4GFC, , STM64/16/4/1, OC192/48/12/3/1
RJ45 for 10/100/1000BASE-T
BNC (75Ω unbalanced) for E1, E2, E3, E4, DS1, DS3, STM1, STM0, STS1 and STS3
RJ48 (120Ω balanced) or Bantam (100Ω balanced) for DS1, E1 and G.703 64k Codirectional
Datacom interface (DVI) for RS232 async, RS232/V.24 sync, X.21, V.35 and RS449/ V.36 (422/423), with DTE, DCE and Monitor modes

ETHERNET

Throughput, BERT, IPv4/IPv6, Loopbacks, NetWiz, Ping, trace route, Scan, L2CP Transparency, Errors, Alarms, Events, Delay, Test Profile Auto Scripting/Sequencer
RFC2544 Throughput, latency, frame loss and back to back tests
V-SAM test suite compliant with ITU-T Y.1564 standard
Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB, and PPPoE support
8 Streams, 3 VLAN, 3 MPLS, TCP/UDP
Layer 4+ test suite: V-TEST (speed test), V-FTP, RFC6349 V-PERF upload & download tests
PCAP packet capture
SyncE with ESMC/SSM and Wander Measurement

FIBRE CHANNEL

Storage Area Networks (SAN) testing
Throughput, BERT, Loopback, SDT, Errors, Alarms, Events, Delay
RFC2544: Throughput, latency, frame loss, back to back tests

SDH/SONET, PDH/DSn and DATACOM

Complete, SDH/SONET, PDH/DSn test payload mapping and multiplexing
Auto Configuration for TDM interface type, bit rate, line coding framing and test pattern
Bit Error and Performance Analysis
Overhead Monitoring and Byte decoding
Service Disruption Time (SDT) and Automatic Protection Switching (APS)
Round Trip Delay (RTD) on all TDM interfaces and payload mappings
Tandem Connection Monitoring
Jitter and Wander measurements
Pulse Mask Analysis at E1, E3 and DS1, DS3
VF drop/insert via headset, tone generation and measurement
G.703 64k Codirectional and Serial Datacom interfaces

FIBER OPTICS

OTDR Viewer with V-Scout™ Optical Link Mapper function, compatible with OPX-BOXe OTDR (wireless or wired)
Fiber Inspection Scope and analysis via USB OTG
OPM via USB OTG
