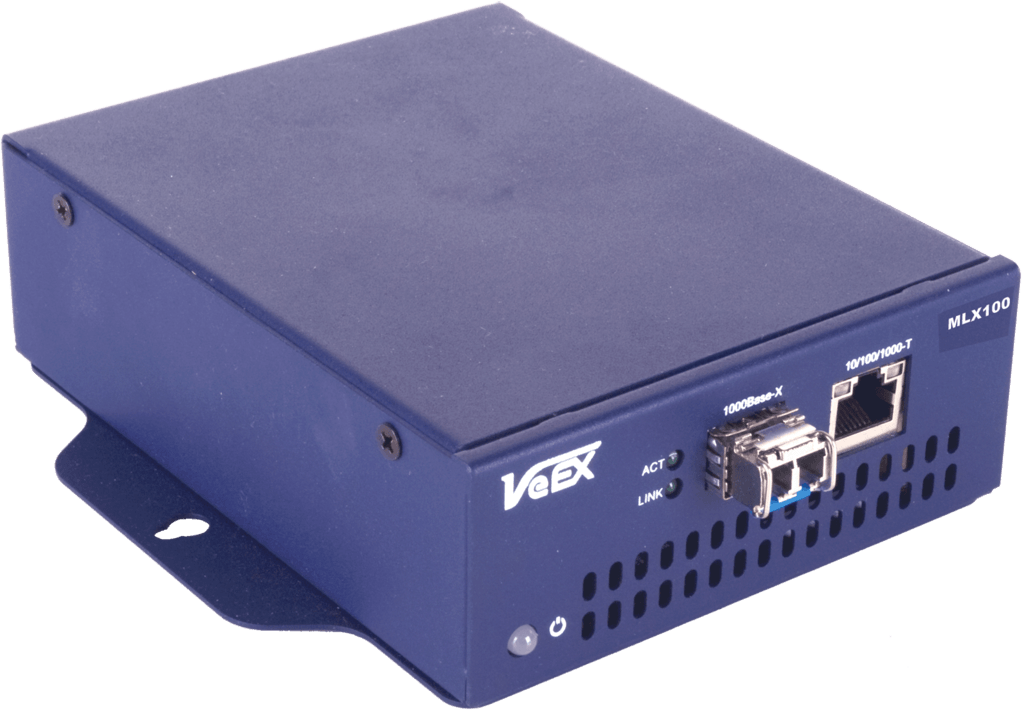

Thiết bị Ethernet loopback - MPLX100

HIGHTLIGHTS

Low cost Ethernet loopback device for testing end-to-end network performance when paired with MX100+, MX120+, MX300, TX300, or 3rd party Ethernet testers
Ideal for testing transparent, switched, routed, and next generation carrier grade Ethernet networks

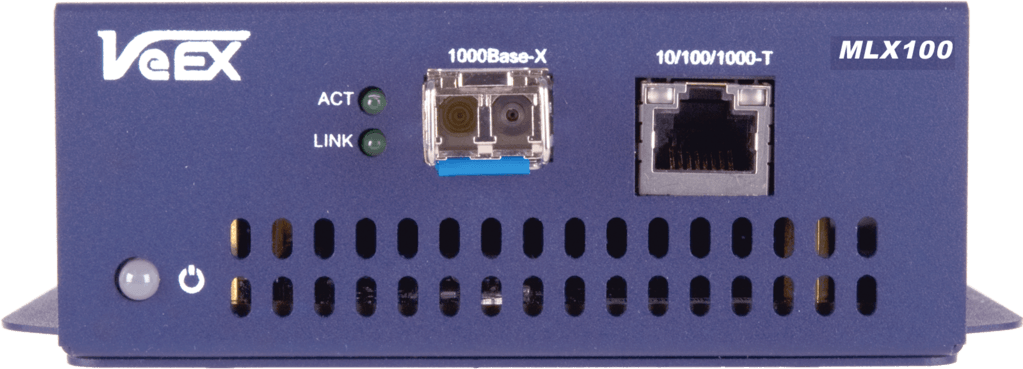

10/100/1000Base-T Electrical port (IEEE802.3), RJ45
1000Base-X Optical port supporting hot swappable, MSA compliant SFP transceivers
BERT, RFC2544 and Throughput application eliminating the need for an expensive remote test partner
Smart Loop mode for Layer 1, Layer 2, Layer 3, and Layer 4
Intelligent device Discovery mode
In-band loopback control; accepts loopback commands from MX100+, MX120+, MX300, or TX300
Out-of-band operation via 10/100Base-T Ethernet management port and ReVeal software
Activate a loopback profile from a remote location
Default loopback profile storage for fast and easy loopbackready boot-up
RS232 supervisory port to configure IP address
Remote control capability and loopback profile creation/upload through ReVeal PC software
