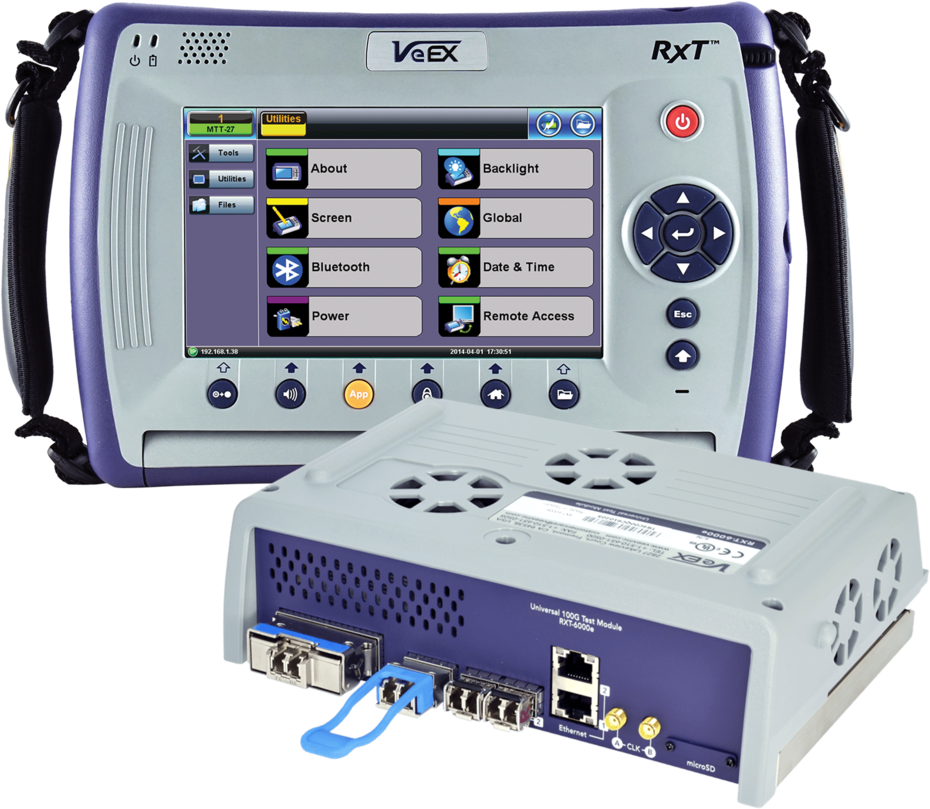

Thiết bị đo mạng đa dịch vụ tới 100G - VeEX RxT-6000e

General

• CFP2 (LR4 & SR10) and QSFP28 interfaces for 100GE, OTU4 and 50GE applications
• Supports IEEE 802.3bj Clause 91 RS-FEC as required for SR4 and SR10
• CFP4 support via CFP2-to-CFP4 adapter
• QSFP+ for 40GE, OTU3
• SFP28 interface for 25GE, 32/16G FC, 24G CPRI 10 and 25G eCPRI Layer 4 with RS-FEC
• SFP+ for 100Base-FX, 1000Base-X, 10GEBase-X, OTU2/2e/1e/1, STM-64/16/4/1/0, OC192/48/12/3/1, and Fibre Channel 16/10/8/4/2/1G and CPRI up to 12G
• RJ45 for 10/100/1000Base-T applications
• Optional PDH/DSn with standard connectors

Ethernet Testing

• Optical 100 Mbps to 100 Gbps Ethernet testing, including 25GE and 50GE
• Electrical 10/100/1000 Mbps Ethernet testing
• Dual-port testing capabilities
• Optical Lane BERT and CAUI-4/XLAUI Lane BERT
• PCS Layer Testing with Skew generation/monitoring
• Multi-stream testing up to 32 independent streams
• IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, and MPLS-TP OAM support
• RS-FEC support for SR4 and SR10 transceivers
• Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB, EoE support
• MAC flooding
• RFC2544 and V-SAM (Y.1564) testing
• IPv4 and IPv6 traffic generation
• BERT and Throughput testing at Layer 2 and Layer 3
• Smart Loopback mode for Layer 2 and Layer 3
• One-Way-Delay latency measurement (GPS assisted)
• Line rate packet capture with Wireshark™ decode
• Error and Alarm Injection

CPRI Testing

• Common Public Radio Interface standard (CPRI) link performance verification
• Supports all Rate Options up to CPRI 10 (from 614.4 Mbps to 24.33 Gbps) per CPRI Specification v7.0
• Layer 2 Framed BER testing with PRBS stress patterns
• REC/BBU (master) and RE/RRH (slave) emulation
• Latency measurements
• Dual-port operation and bi-directional monitoring mode
• CPRI Hyperframe Capture

eCPRI Testing

• 25G eCPRI
• Dual-port testing capabilities
• RS-FEC support
• Multi-stream testing up to 32 independant streams
• Throughput testing at Layer 2 and Layer 4
• IPv4 and IPv6 support
• Q in Q (VLAN stacking) and MPLS support
• High accuracy One-Way-Delay latency measurement (GPS assisted)
• Line rate packet capture

Fibre Channel

• Storage Area Networks (SAN) testing for 1G, 2G, 4G, 8G, 10G, 16G and 32G interfaces
• BERT and Throughput test
• RFC2544: Throughput, latency, frame loss, back to back tests Layer 1 and layer 2 loopbacks

OTN Testing

• OTN testing for OTU1, OTU2, OTU1e, OTU2e, OTU3, OTU4
• Complete multi-stage Mapping/Multiplexing
• Advanced multi-step Map/Mux with SDH/SONET/PDH/DSn test payloads
• Ethernet over OTN (EoOTN)
• ODUflex into ODU2, ODU3 and ODU4 with Bulk payload
• Service Disruption Time (SDT)
• Tandem Connection Monitoring
• Overhead monitoring and generation
• Terminate, Payload Through and Line Through test modes
• Per-lane optical power and frequency measurements
• External clock reference interface
• Histogram Analysis

SDH/SONET Testing

• Available as Line Rate or mapped into OTN payloads
• STM-0 to STM-64 and STS-1/OC-1 to OC-192
• Advanced multi-step Map/Mux with PDH/DSn test payloads
• Test payload multiplexing down to VC11/VT1.5 and internally generated PDH/DSn tributaries

PDH/T-Carrier Testing

The test set provides optional legacy SDH/SONET/PDH and DSn test interface capabilities and sub-rates from 155M (STS3/ STM1), 55M, (STS1/STM0), 140 Mbps (E4), 34 Mbps (E3), 2 Mbps, 45Mbps (DS3), 1.5 Mbps (DS1), and G.703 64k codirectional.
