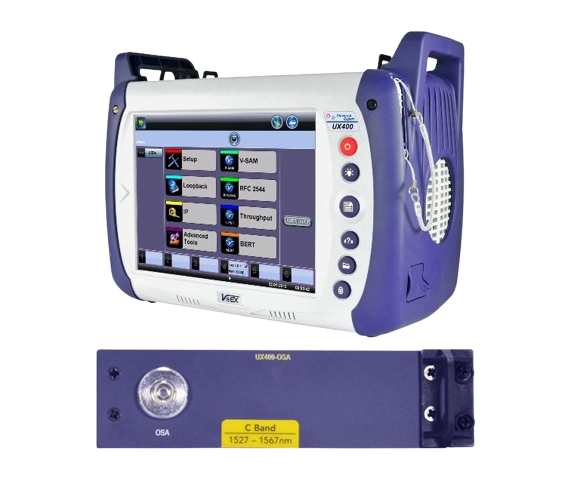

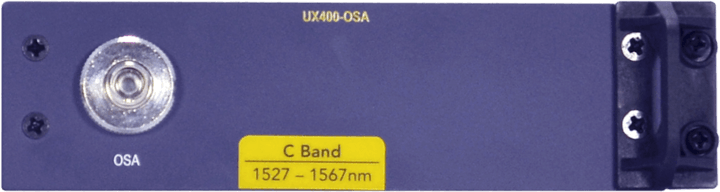

Module phân tích phổ quang - UX400 OSA

PLATFORM HIGHLIGHT

Precise measurement of WDM wavelengths
Wide wavelength range
High wavelength accuracy and resolution
Built-in wavelength reference
High power sensitivity
Excellent power accuracy

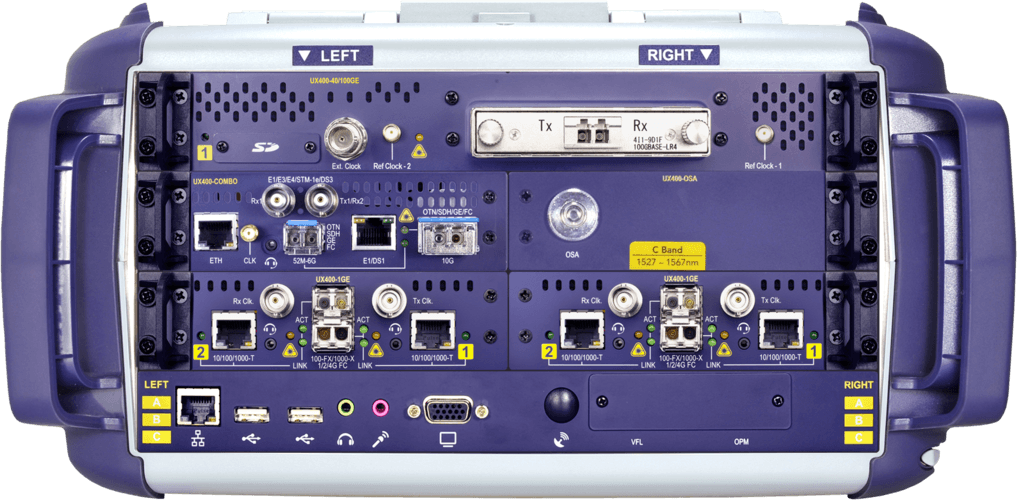

Compact, light-weight, 1 slot module
Rugged, reliable design - No moving parts
Superior shock resistance
Periodic calibration not required
Ultra-low power consumption
Low temperature sensitivity
Intuitive operation with dedicated test functions
Touch screen for simple zooming and navigation

KEY FEATURES

S, C and C+L band wavelength ranges
Fast continuous scanning - full spectrum in < 4 sec
Simultaneous measurements of up to 160 channels
DWDM channel spacing down to 50 GHz
Channel power measurement
Channel threshold detection
High wavelength accuracy: ± 50 pm
High dynamic range: >50 dB
OSNR measurement: >30 dB
Low Polarization Dependent Loss (PDL): < 0.3 dB
Universal optical interface with industry standard optical adaptor types
Supports different modulation schemes used for 10/40/100 GHz transmission systems
