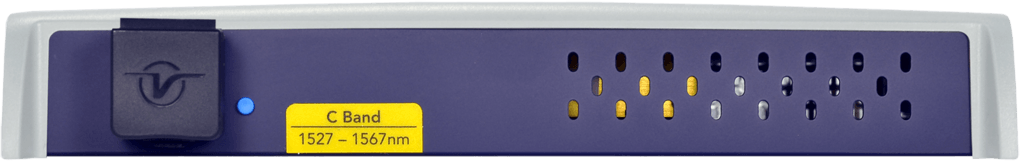

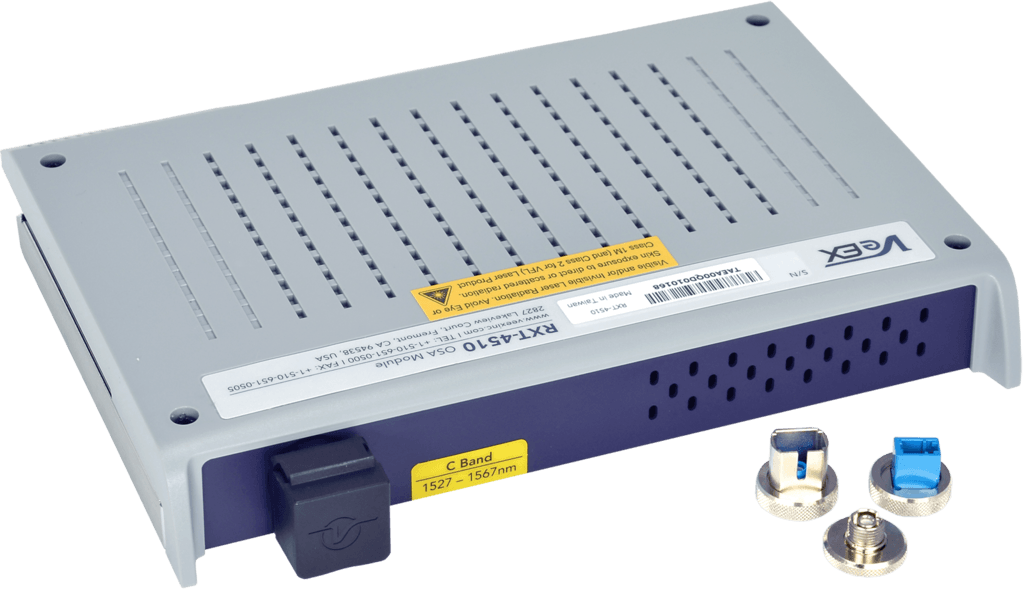

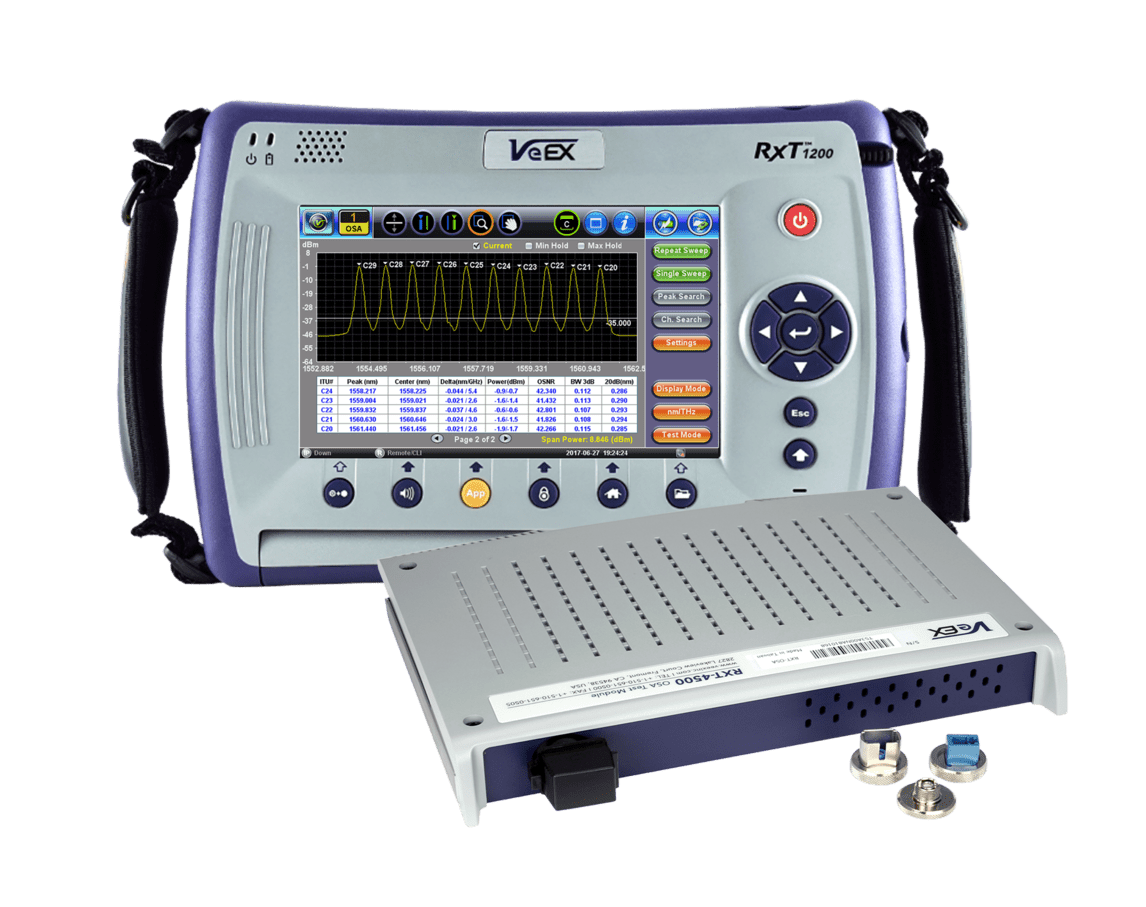

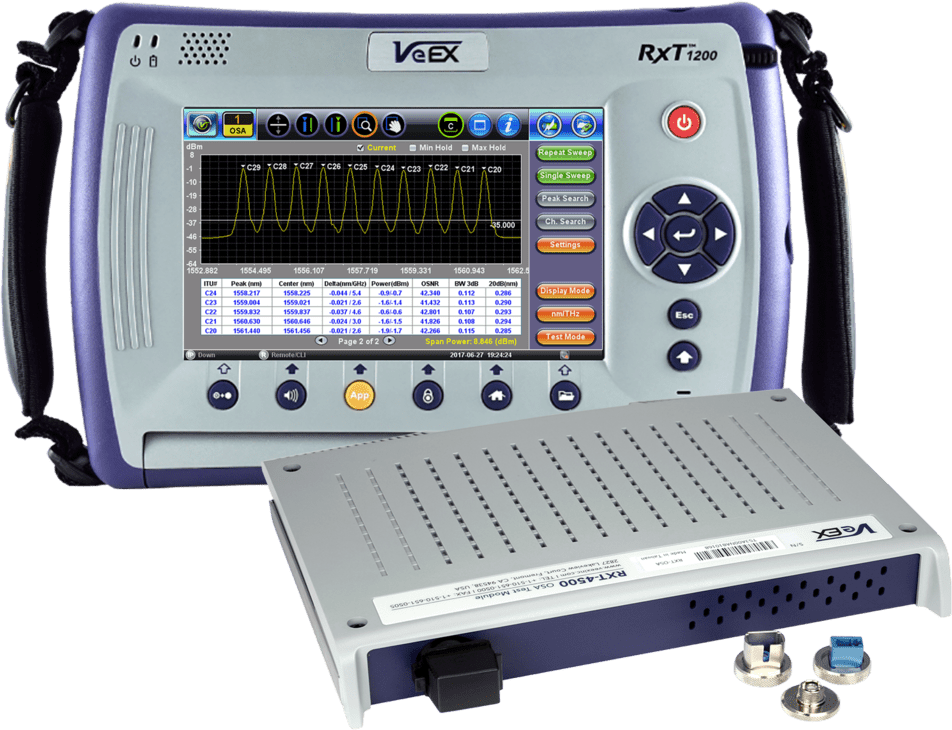

Module phân tích phổ quang - RxT4500

HIGHLIGHT

Precise measurement of WDM wavelengths
Wide wavelength range
High wavelength accuracy and resolution
Built-in wavelength reference
High power sensitivity
Excellent power accuracy
Rugged, reliable design - No moving parts
Superior shock resistance
Periodic calibration not required
Ultra-low power consumption
Low temperature sensitivity
Intuitive operation with dedicated test functions
Touch screen for simple zooming and navigation
Battery operating time > 8 hours
* RXT-4500 OSA modules with serial # prefix TS3 are end of life. Software upgrades, calibration and repair services are no longer supported or offered.

FEATURES

Wavelength range from 1260 to 1650 nm
DWDM channel spacing down to 25 GHz, module dependent
Resolution 0.1 nm C-band
In-band OSNR measurement
Fast continuous scanning at ≤ 5 sec
Fast continuous scanning at ≤ 5 sec
Simultaneous measurements of up to 200 channels, module dependent
Channel power measurement
Channel threshold detection
Span power measurement
Continuous sweep with min/max hold
Channel frequency and wavelength delta vs. ITU grid
High wavelength accuracy: ± 50 pm
High dynamic range: ≥ 65 dB
OSNR measurement: up to 40 dB
Low Polarization Dependent Loss (PDL): < 0.3 dB
Universal optical interface with industry standard adaptors
Supports 10/40/100 Gbps transmission modulation types
Optical Channel Checker Test Mode
Drift Analysis Test Mode
DWDM channel monitoring per ITU G.694.1 grid for 25/33/37.5/100/200 GHz, module dependent
CWDM channel monitoring per ITU G.694.2 grid
OSNR measurement compliant with IEC 61280-2-9
* RXT-4500 OSA modules with serial # prefix TS3 are end of life. Software upgrades, calibration and repair services are no longer supported or offered.
