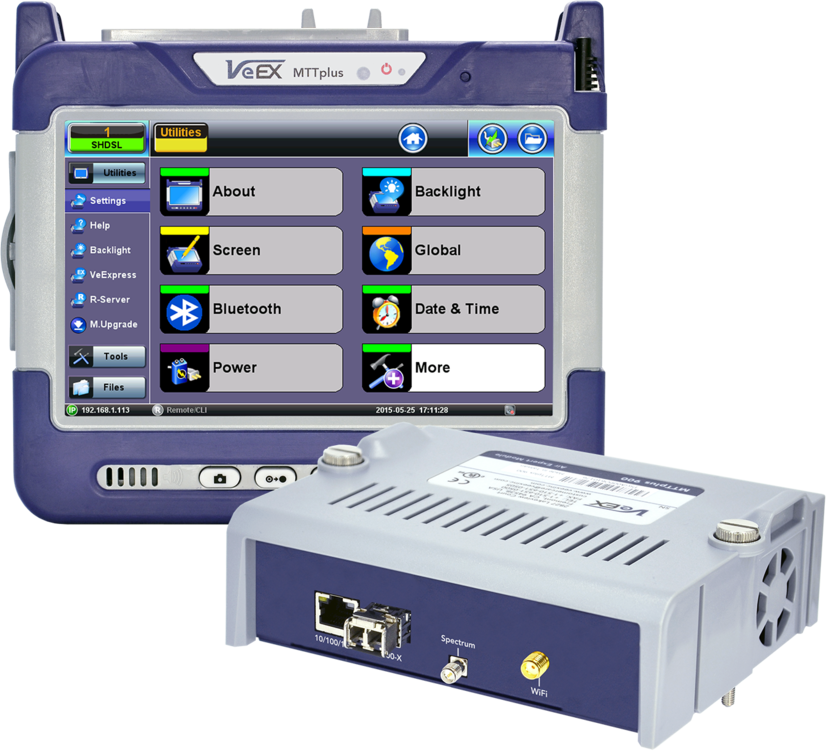

Module đo Wifi - MTTPlus-900

HIGHLIGHTS

Supports detection and connection to 802.11a/b/g/n/ac devices
Discovers networks and lists Access Points, Clients and Channels in table and graphical format
AP detailed capabilities discovery including SSID, BSSID, channels, security, supported data rates, signal and noise levels, co-channel and adjacent APs and associated clients
Survey coverage problems with signal and noise levels tracking
Analyze Channel usage by utilization and number of APs
Discover associated and non-associated WiFi Clients present in the network
One button Auto-Test evaluates the health of the WiFi network with analysis of security, coverage, interference, top talkers and connectivity with configurable AP list
Connectivity testing with DHCP connection to APs, Ping, Trace Route and ARPWiz
Verify network performance with dual ended V-Perf Upload/ Download throughput testing

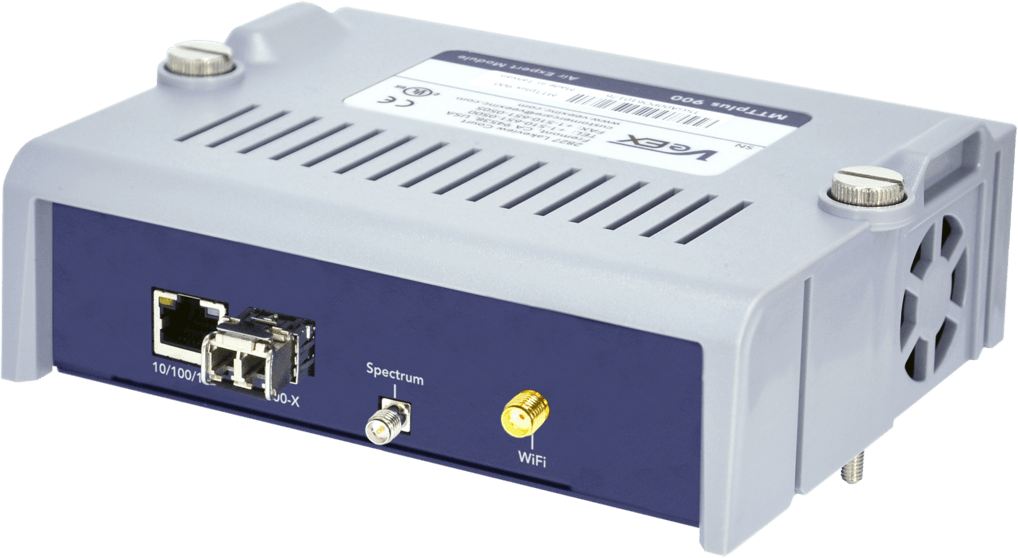

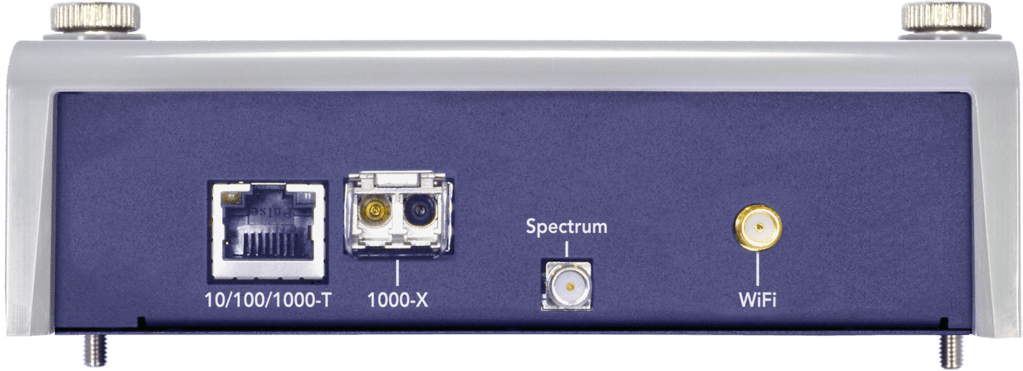

Optional Ethernet 10/100/1000-T and 1000-X ports to verify end-to-end throughput performance
Directional antenna to locate and track a specific AP or client

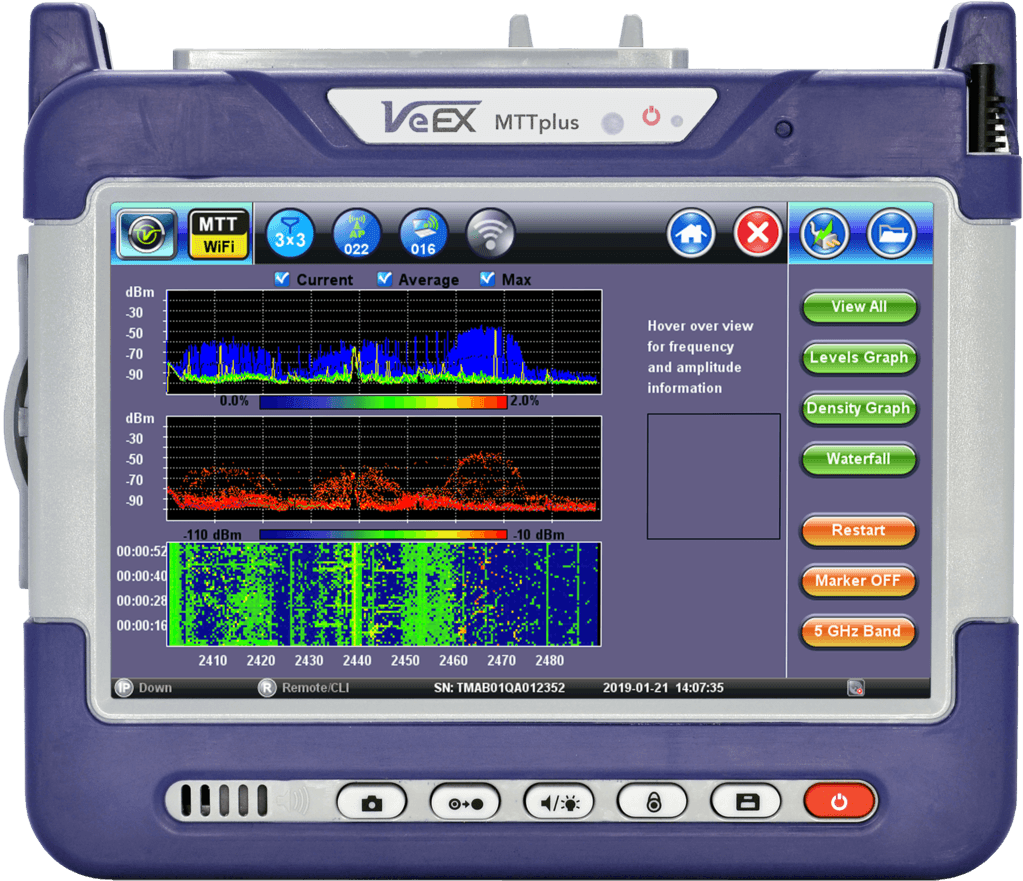

Optional dual band 2.4 GHz and 5 GHz spectrum analyzer to easily discover and identify WiFi and non-WiFi interference
Optional built-in GPS on the MTTplus mainframe to record the location of the test being performed, and add maps to reports
Optional built-in Camera on the MTTplus mainframe with automatic bar/QR code to record tested environment and network devices for future reference
