| Manufacturer |
FITEL (Furukawa Electric) |
| Manufacturer Part Number |
S179A |
| Product Series |

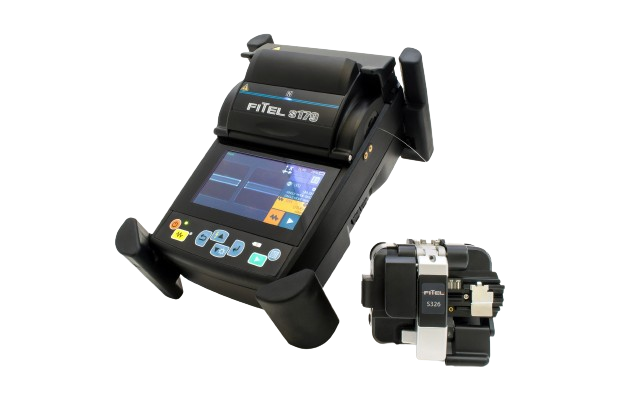

FITEL S179 Series Fusion Splicer |
| Product Type |
Fusion Splicers |
| Fiber Compatibility |
Singlemode 9/125μm (OS1, OS2) (ITU-T G.652), Multimode 50/125μm (OM2, OM3, OM4) (ITU-T G.651.1), Multimode 62.5/125μm (OM1) (IEC60793-2-10), Dispersion-Shifted Fiber (DSF) (ITU-T G.653), Non Zero-Dispersion-Shifted Fiber (NZDSF) (ITU-T G.655), Ultra Bend Insensitive Fiber (BIF/UBIF) (ITU-T G.657), Cut-off Shifted Fiber (ITU-T G.654, Large Area type), Erbium-Doped Fiber (EDF) |
| Size / Operation |
Aerial, Benchtop, Compact, Handheld, Portable, Rugged |
| Battery Capacity |
Typical 200 splice/heat cycles, 90sec/cycle |
| Case Included |
Hard case |
| Protection Level |
Harsh environments, Ruggedised, IK07 Mechanical Impact rating, IP5X Dust Resistance, IPX2 Water Resistance |
| Device Connectivity via |
Bluetooth, NFC, USB, WiFi |
| Splicer: Alignment Type |
Active, Core |
| Splicer: Fiber Count |
Single Fiber |
| Splicer: Special Applications |
Dissimilar fiber |
| Splicer: Splice Time |
SM: 6 sec |
| Splicer: Heater time |
60mm: 9 sec |
| Fiber Cladding Diameter |
80 to 150μm |
| Industry |
Installers and Contractors (OSP), Telecommunications, Carriers, Service and Content Providers, Aerospace and Defence, Optical Equipment Manufacturing (OEM), Mining, Off-shore and Remote |
| Applications |
Access Construction (Underground, Aerial), Drop Construction (Aerial, Underground), Long-haul installation, CO (Central Office) LAN and Network, OSP (Out Side Plant), NBN (National Broadband Network), Wideband Transmission Network, NBN: Single Fibre, PON / FTTx (including FTTP (GPON), FTTH, and FTTB), Metro Ethernet, Mobile Backhaul, Last Mile, OEM (Optical Equipment Manufacturing), Specialty and Exotic Fiber Splicing, Optical Parametric Oscillators (OPOs), Tunable heterodyne source, Metrology |
| Operating Temp. (Min) |
-10°C |
| Operating Temp. (Max) |
50°C |
| Recommended Service Interval |
1 Year |
| Equipment Service/Calibration Notes |
1st service free - valid at AusOptic for 12 months after purchase, Equipment used in harsh environments may require more frequent servicing and calibration intervals |

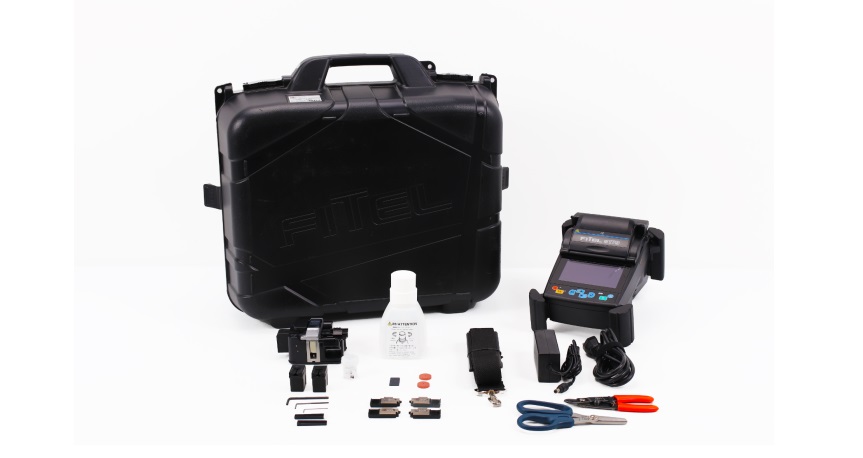

| Standard Package Contains |
1 x FITEL S179 Fusion Splicer
1 x FITEL S326A Cleaver
1 x Built-in Battery Pack
1 x Hard Carrying Case
1 x Spare Electrodes
1 x AC Adapter
1 x AC Power Cord
1 x Cooling Tray
1 x Cleaning Brush
1 x Electrode Sharpener
1 x Tool Case
1 x LCD anti-reflective sheet
1 x Instruction Manual
1 x Quick Reference Guide
|
