PLATFORM HIGHLIGHT
Robust, lightweight chassis packed with powerful features for demanding environments and test conditions

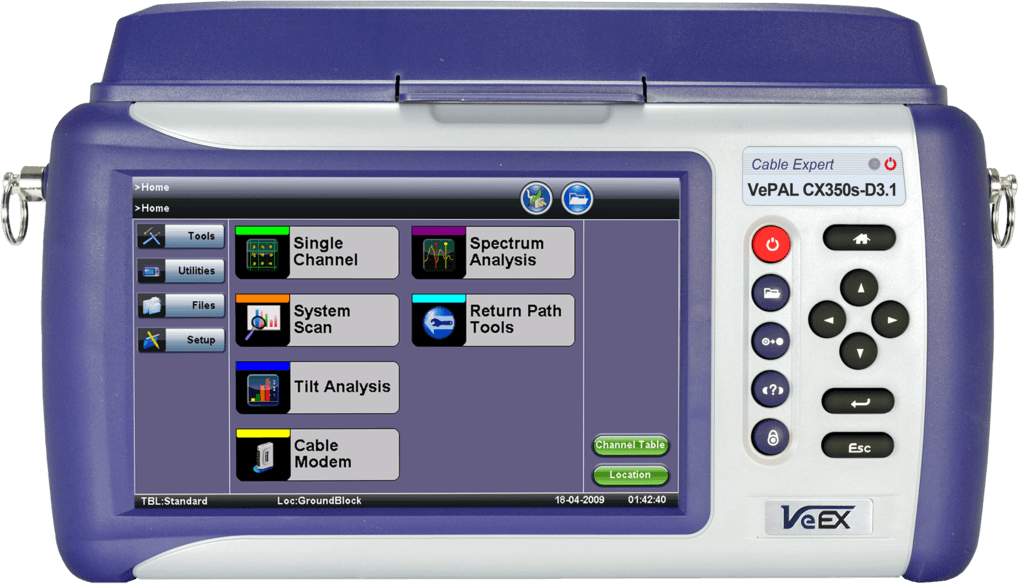

High resolution color 7” touch-screen with graphical user interface
Ethernet LAN management port for remote control, back office applications, and workforce management
Fast and efficient test result transfer to USB memory stick or FTP upload via LAN or DOCSIS ports
Maintain instrument software, manage test setups and channel tables, process measurement results and generate customer test reports using included ReVeal™ PC software
Extend field testing time using interchangeable LiIon battery pack/s
Ability to lock user interface to prevent unwanted human interference during long-term testing
WiFi Wiz with InSSIDer SSID Analysis*
WiFi Spectrum Analyzer*
VoIP and IPTV*
Digital Fiber Inspection Scope*
Optical Power Meter*
KEY FEATURES
Frequency range from 5 MHz to 1 GHz
Comprehensive SLM measurements (single channel, system scan, tilt, and installation check)
Video and Audio power level measurements (Annex A, B, C signals)
Forward and Return path QAM measurements (MER, Pre/Post BER, Constellation diagram, Histogram, and Equalizer on/off mode)
Advanced Digital measurements* (HUM, EVM, Phase Jitter, Symbol Rate Error, Frequency Response, Group Delay)

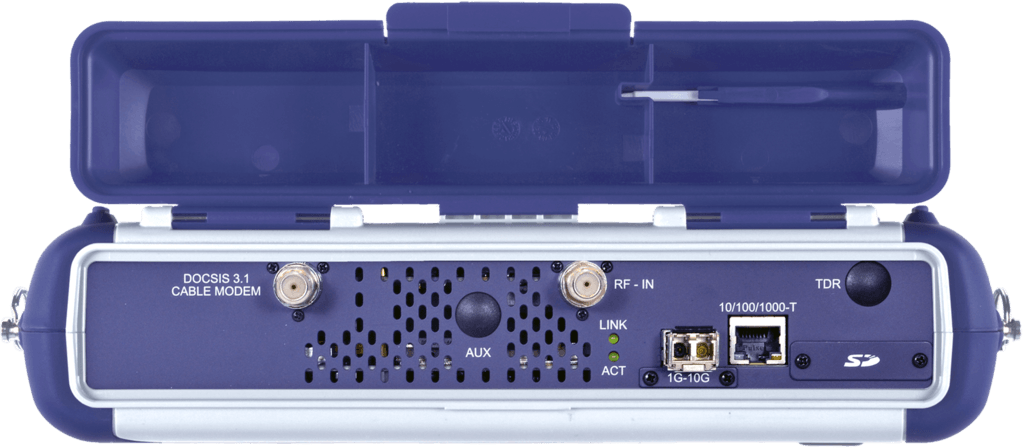

DOCSIS 3.0 Cable Modem with up to 32x8 Channel Bonding
DOCSIS 3.1 Cable Modem*
Subcarrier Scan (patented)
Spectrum view to capture impulse noise and interference
Home Installation Procedure (HIP) with user defined test limits
Built-in Upstream Generator* (CW, QPSK, QAM 16/64/128/256 modulation)
Ethernet up to 10 GigE with SLA validation tests including BERT, Throughput, RFC2544 and Y.1564 SAM*
Built-in TDR* supports up to 2 km / 6000 ft of standard coaxial cable
Single DS1 Transmitter/Receiver with Balanced (100Ω) interfaces* for full Rate DS1 and Fractional N x 64 kbps or N x 56 kbps testing
ISDN PRI call setup*
* Optional Features
