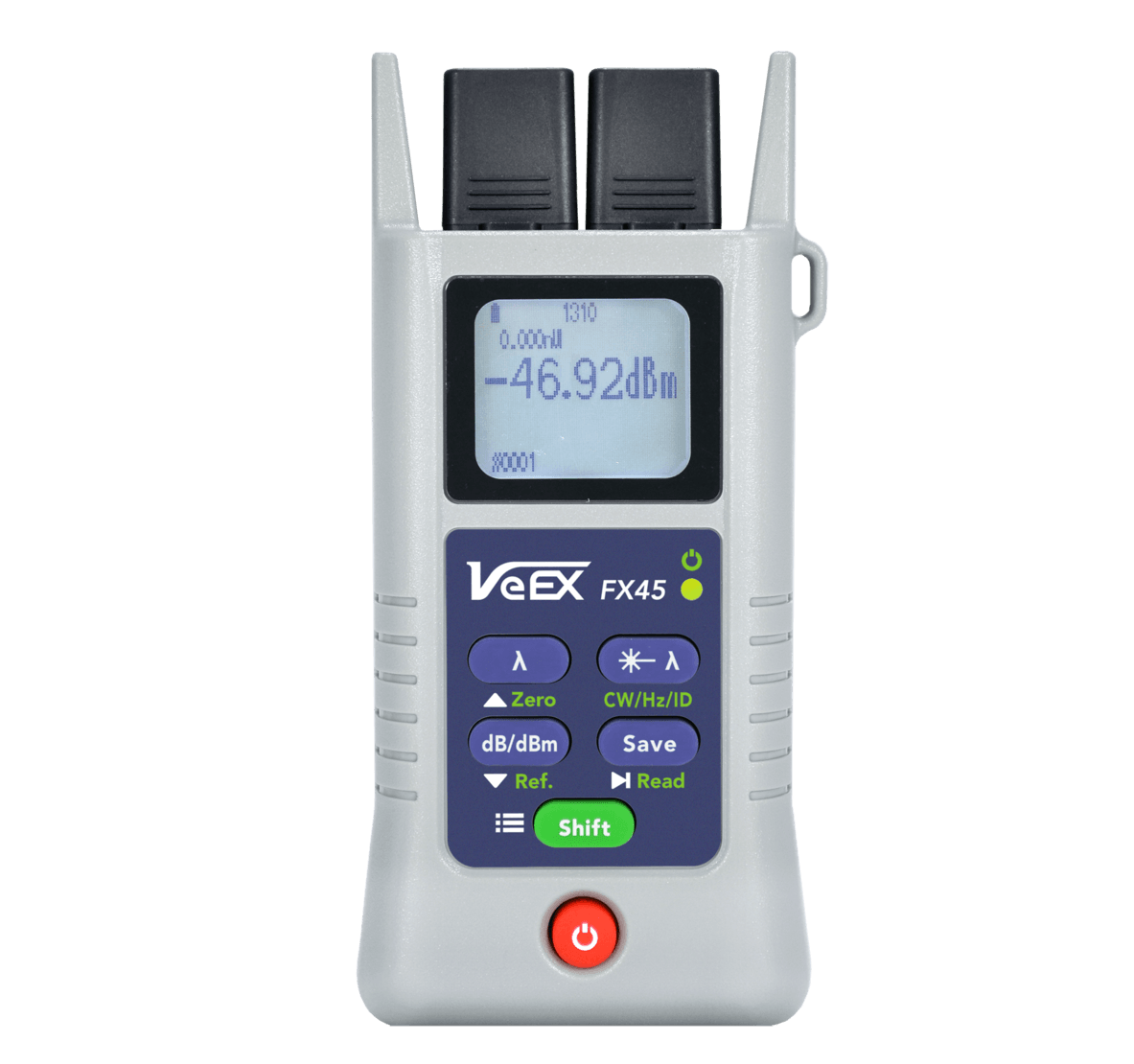

Máy đo thu phát công suất quang - FX45 series

HIGHLIGHT
Singlemode and Multimode testing
PON, Telecom, CATV and LAN/WAN applications
Dual wavelength laser source and power meter
OPM, OLS, OLTS configurations
High accuracy and wide dynamic range
Save OPM measurements (> 1000 single results) with timestamp
Save OPM measurements (> 1000 single results) with timestamp
Reference power level setup and recall
Frequency detection for fiber identification
Wave ID automatically detects incoming wavelength from compatible VeEX light source
Splash resistant keypad and chassis design
High contrast display - Visible outdoors and backlight for indoor or low light conditions
Alkaline or Rechargeable batteries with Auto power off
Field interchangeable OPM adapters support multiple connector types and allow easy access for cleaning

SPECIFICATIONS

Optical Power Meter (OPM)
Calibrated wavelengths (FX45): 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
Calibrated wavelengths (FX48): 830, 850, 940, 980, 1300, 1310, 1330, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625 & 1650 nm
Detector type: InGaAs
Level measurement range:
PM1 version: -65 to +10 dBm
PM2 version: -50 to +25 dBm
Accuracy: +0.2 dB or 5%
Wave ID detection (compatible VeEX source): 850, 1300, 1310, 1490, 1550, 1625, & 1650 nm
Optical Light Source (OLS)
Wavelengths: 1310/1490 nm or 1310/1550 nm or 850/1300 nm
Test Tone Generation: 270, 1 KHz, 2 KHz
Stability: ± 0.03 dB for insertion loss measurements
Laser Safety: Class 1
Visual Fault Locator (VFL)
Wavelength: 650 nm
Connector style: Universal 2.5 mm
Mode: CW or 2 Hz
Power Output: 1 mW
Laser Safety: Class 2
General
Communication port: micro USB
Connector or Adaptor types: FC/SC/ST/LC, Universal 1.25, Universal 2.5 mm
CE compliance as per IEC 61326
Battery operating time: approximately 80 hours (without backlight)
