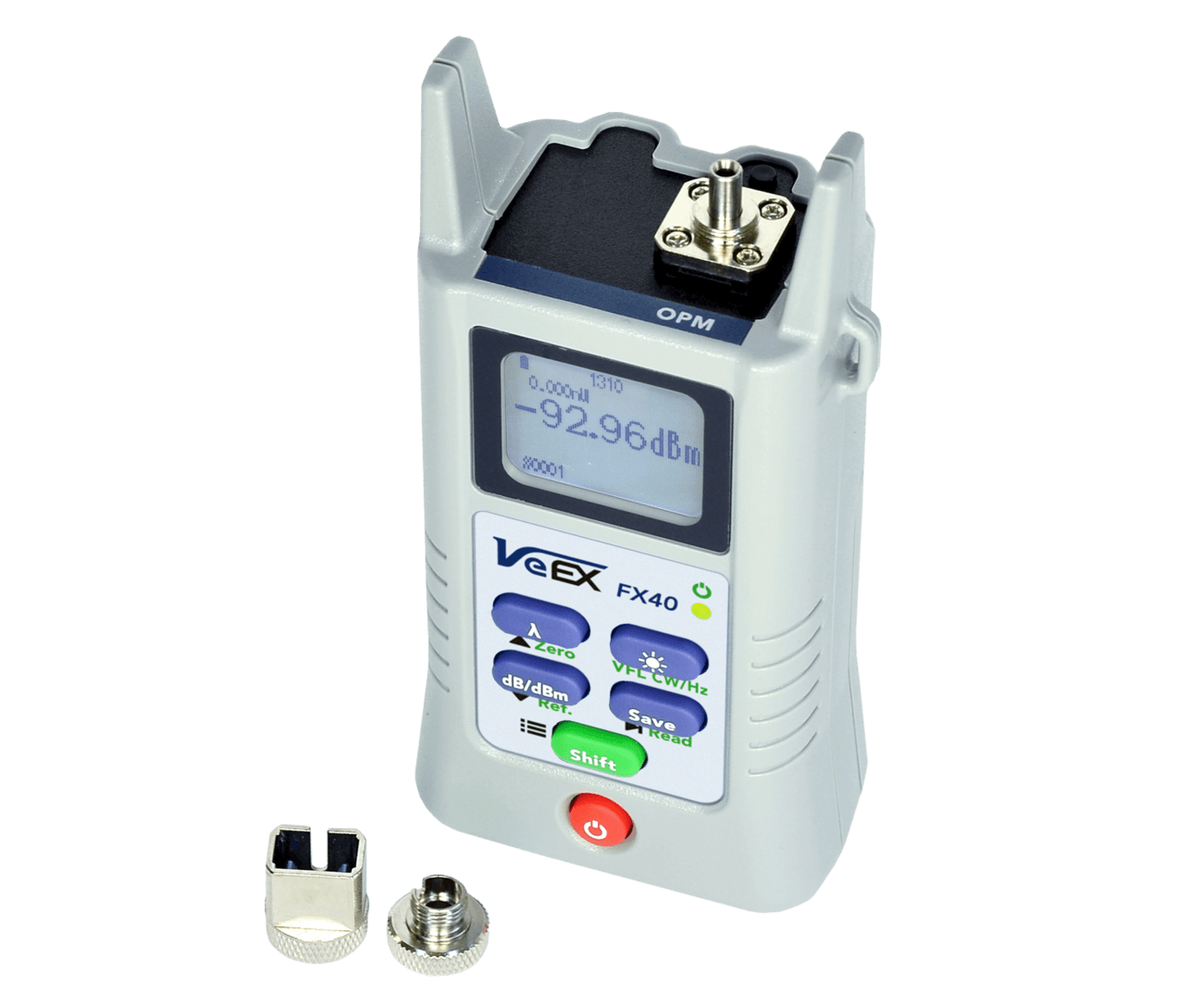

Máy đo thu phát công suất quang - FX40 series

HIGHLIGHT

• Singlemode and Multimode testing
• Built-in universal 2.5 mm tip sleeve
• PON, Telecom, CATV and LAN/WAN applications
• Dual wavelength laser source and power meter options
• High accuracy and wide dynamic range
• Save OPM measurements (>100 single results)
• Transfer stored results to a PC or upload results to Fiberizer Cloud via micro USB interface for report generation and printing
• Reference power level setup and recall
• Splash resistant keypad and chassis design
• High contrast display - Visible outdoors and backlight for indoor or low light conditions
• Alkaline or Rechargeable battery option with Auto power off
• Field interchangeable optical adaptors support multiple connector types and allow easy access for cleaning

SPECIFICATIONS

Optical Power Meter (OPM)

• Calibrated wavelengths: 850, 1300, 1310, 1490, 1550, 1625, 1650 nm
• Power Level Range:
  -PM1 version: -65 to +7 dBm
  -PM2 version: -50 to +25 dBm
• Accuracy1,2: up to ±0.2 dB or 5%
• Modulation and Wave ID detection: Not supported

Optical Light Source (OLS)

• Wavelengths: 850/1300 nm to OLS wavelengths
• Test Tone Generation: 270, 1 KHz, 2 KHz
• Stability: ±0.03 dB for insertion loss measurements

Visual Fault Locator (VFL)

• Wavelength: 650 nm
• Connectory style: Universal 2.5 mm
• Mode: CW or 2 Hz
• Power Output: 1 mW
• Laser Safety: Class 2

General

• Results saving: 100 without timestamp
• OPM Remote control data transfer using LT-Sync PC software
• Communication port: micro USB
• OLS/OPM adaptor types: FC/SC/ST/LC/E2000, Universal 1.25 mm, Universal 2.5 mm
• Battery: Alkaline (AA) or Optional NiMH with 5V micro-USB power adaptor
• Battery operating time: approximately 100 hours (without backlight)
