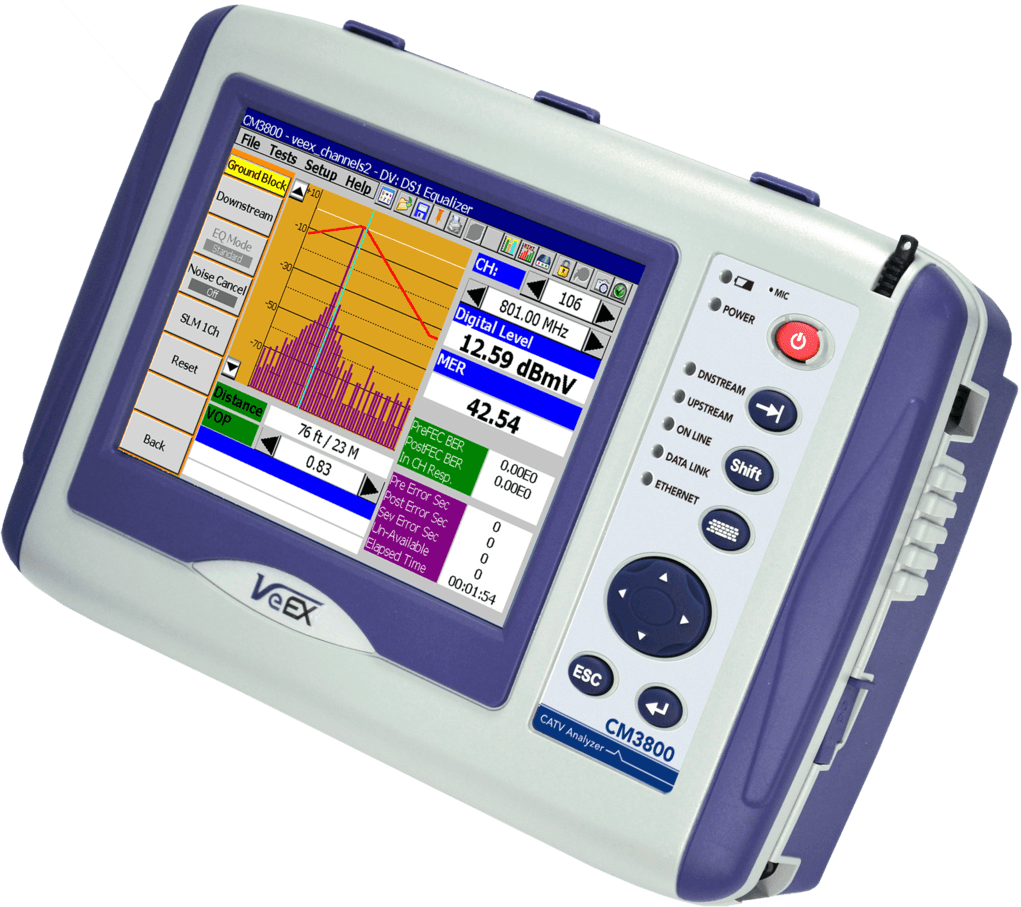

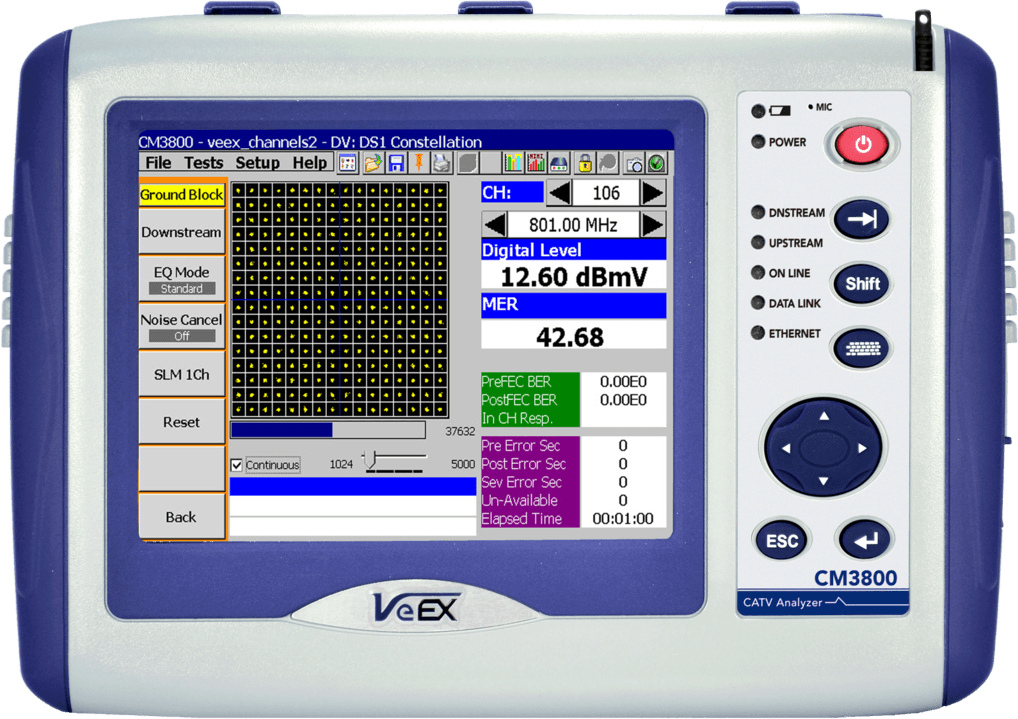

Sweep/Spectrum/DOCSIS 3.0 tester - CM300/CM3800

PLATFORM HIGHLIGHTS

• Provides cable TV technicians with a next-generation plant maintenance tool with Sweep & Spectrum Analysis
• Easy-to-use WinCE system minimizes training and maximizes testing accuracy and consistency
• Compatible with existing CaLan® sweep installations - works side by side with legacy deployments
• Open architecture design provides suppport for a variety of devices and future applications
• Interfaces to the web-based realGATE™ Test Management system, providing a full array of management tools for tracking assets, analyzing test data and implementing workforce management
• Simplifies Proof-of-Performance testing
• Use WiFi option, Ethernet or cable modem to access back office systems and manage test results
• Advanced Gated measurements allow characterization & troubleshooting closer to the source

KEY FEATURES

• New Fast Spectrum with 0.3 uSec sample rate
• Now with Equalizer Stress, Frequency Response and Group Delay measurements in Digital & Cable Mode
• i-QAM option identifies impairments in a QAM signal
• Gated CCN, CSO, CTB & HUM tests on active channels
• DOCSIS 3.0 Cable Modem with up to 8 DS and 4 US bonded channels
• High resolution true non-interfering 5 to 1000 MHz downstream sweep system with manual & automatic Gain & Slope offsets
• Future proof flexible and upgradeable DSP software defined receiver technology
• Fast 5 to 200 MHz upstream sweep, plus ingress detection and display
• WiFi 802.11g Wireless USB adapter option
• Fast 1 GHz Spectrum Analyzer with 1,000 MHz Span and 1 MHz to 30 kHz RBW
• 6.4” full VGA, color touch screen (daylight visible)
• BPI+ and PacketCable™ digital certificates installed
• Weather and shock resistant
• Net-Tools: ping, trace, throughput and IP details via WiFi, Ethernet and Cable Modem
• User programmable automated 24 hour testing
• Additional applications for live search, Telnet, SNMP, FTP, Remote Desktop plus options for WiFi, Signature Capture and more
