VeEX TX300s - OTDR Module

HIGHLIGHT

Software
Flexible software architecture supports dual test applications running simultaneously
ReVeal™ PC software to maintain instrument firmware, manage test configurations, process measurement results and generate customer test reports
Fiberizer Desktop PC software for fiber trace analysis
Fiberizer Cloud based trace analysis and data management
R-Server support for centralized work force management and test results repository
Hardware

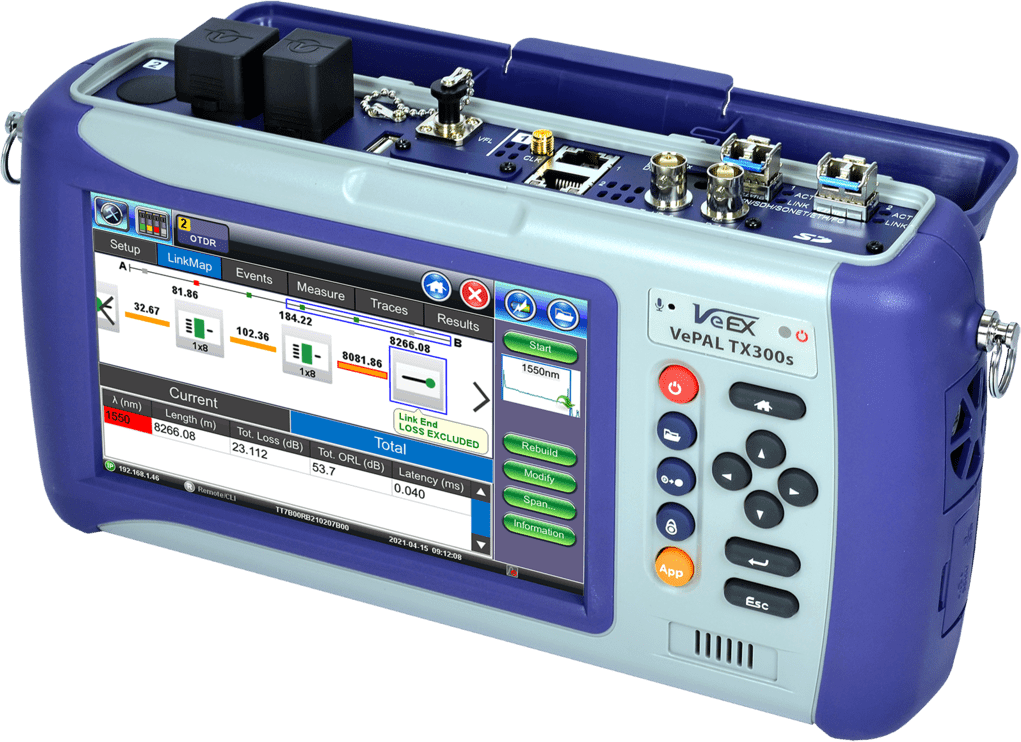

High resolution, 7” full color TFT touch-screen viewable in any lighting condition
Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth®, or 3G Card for back office applications
Built-in microphone and speaker for VoIP & VF applications
Intelligent fan operation with built-in temperature sensor
Interchangeable Li-ion battery pack for extended test time
USB-A Interface for USB flash drives and fiber inspection probe connection

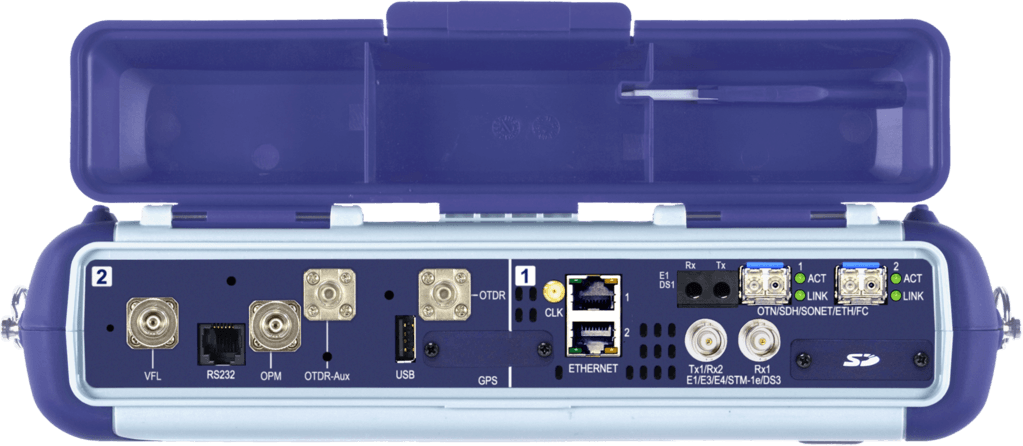

Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
Optional built-in GPS module for Geotagging OTDR traces

KEY FEATURES

Optical Testing
FTTx/PON optimized parameters for best in class dead zones for 1xN splitters and normal reflective events
Multimode and Singlemode Wavelength test options - 850, 1300, 1310, 1490, 1550 & 1625 nm
Filtered 1625 nm OTDR port for in-service measurements and live fiber detection with embedded power meter
High dynamic range (up to 45 dB) for long haul fibers and testing through high-port-count PON splitters
Sampling points up to 256,000
Event dead zone < 1m, Attenuation dead zone < 4m
Telcordia GR-196 and SR-4731.sor file formats
Optional V-Scout mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
Optional Built-in Visual Fault Locator, Optical Power Meter and Light Sources
Optional Fiber Inspection Scope (USB)
Multi-Service Testing
SyncE and IEEE 1588v2
OTN, SDH/SONET, PDH/DSn
Ethernet and Fibre Channel
CPRI and OBSAI Testing
