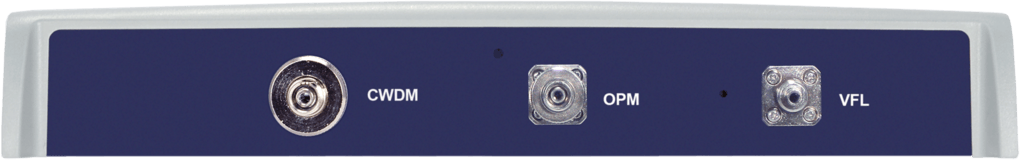

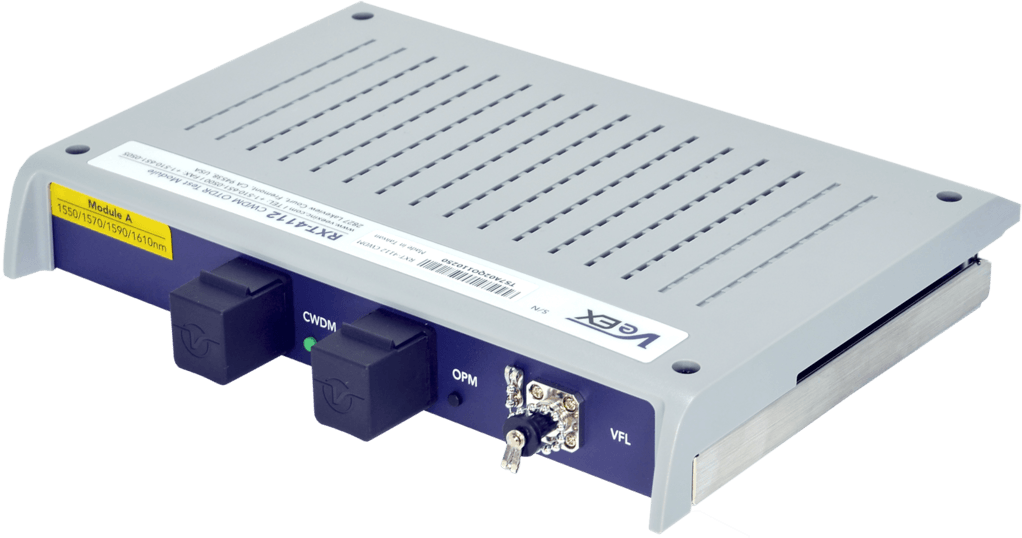

VeEX RxT-4112 CWDM OTDR Module

The RXT-4112 test module for the VeEX® RXT-1200 platform features a range of Optical test functions including CWDM OTDR, OPM, Light Source and VFL. Multi-protocol networks utilizing CWDM technology can easily be verified with a single test platform ensuring maximum test productivity. Fiberizer® software for Windows® Desktop, Android™, and/or Apple® mobile devices is available to assist in data transfer, record management, and report generation for various VeEX fiber optics testers. View the Fiberizer webpage for more details.

DATASHEET

Contact

Thông tin chi tiết sản phẩm

Đặc tính

Optical Testing

Characterize CWDM networks at ITU-T G.694.2 wavelengths
End-to-end continuity testing using stabilized CWDM light source (via OTDR port)
OTDR port features live fiber detection
High dynamic range (up to 40 dB) for long haul fibers and testing through CWDM multiplexers/OADMs/de-multiplexers
Sampling points up to 128,000
Optimized test parameters for best in class dead zones
Event dead zone < 1m, Attenuation dead zone < 4m
Telcordia GR-196 and SR-4731.sor file formats
Optional V-Scout mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
Optional Built-in Visual Fault Locator
Optional Optical Power Meter
Optional CWDM Light Source via OTDR port
Upload OTDR traces and Fiberscope images directly to Fiberizer Cloud via wired or wireless internet connection
Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
