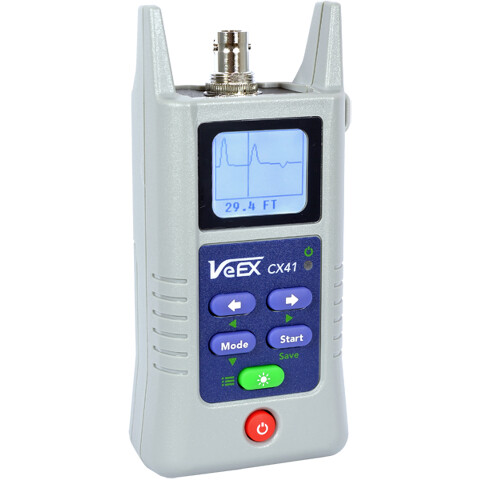

VeEX CX41 TDR and CX42 DMM

The CX41 is a small, ultra-portable, and budget-friendly Time Domain Reflectometer (TDR), ideal for Outside Plant (OSP), and Hybrid Fiber Coax (HFC) network installation and maintenance. Its accurate time-of-flight (Delay) measurement mode makes it a must-have tool for GNSS antenna feed installation and 1PPS precision timing distribution, among other applications.

The CX42 is a budget friendly and ultra portable telecom grade Digital Multimeter suitable for the Outside Plant.

Contact

Thông tin chi tiết sản phẩm

Đặc tính

CX41 TDR

Fault identification and location
Cable length verification
Direct cable delay measurement in nanosecond (no estimate conversion required)
One touch automatic mode for a quick test
Manual mode for detailed TDR trace analysis
DC voltage measurement for line power verification*
AC voltage measurement for induced foreign voltage detection*
Simple user interface that saves time on the job

Precision Timing Applications

Accurate direct Cable Delay Measurement in nanoseconds, independent from VP% values
Ideal for GNSS Antenna Feed Documentation
Antenna Cable Delay for PRTC timing accuracy compensation
Coaxial cable delay compensation for 1PPS timing distribution

* Telco Version

CX42 DMM

DC voltage measurement for line and equipment power verification and foreign voltage detection
AC voltage measurement for induced foreign voltage detection
Resistance measurements for cable insulation verification and short detection
DC and AC current
Capacitance measurements for verifying cable balance
Simple user interface that saves time on the job

Đặc điểm kỹ thuật

CX41 TDR

Telco (UTP) Version:
- Test port: 2 mm banana
- Range: 3.6 km (12 kft)
Coaxial version:
- Test port: F or BNC
- Range: 1.5 km (5 kft)
Accuracy:
- For length mode: 1% of selected range or 1m (3ft)
- For nS mode: ±0.002% ±1 nS
Minimum distance resolution: 0.025m (0.08 ft)
Cable delay resolution: 1 nS
Velocity factor: Adjustable to 99%
Pulse width: 10 nS to 10 µs (automatic with range)
Impedance: 50, 75, 100, 120 ohms
DC voltage range: 300V*
AC voltage range: 200V*
Dimensions: 129 x 61 x 39 mm (5.1 x 2.4 x 1.5 in)
Weight: <450 grams (<1 pound)

* Telco Version

CX42 DMM

DC voltage range: 300V; accuracy 2%, ±1V
AC voltage range: 250V; accuracy 2%, ±1V
Resistance: 0Ω to 999 MΩ; accuracy 3%, ±1Ω
AC loop current range: 80 mA; accuracy 2%, ±1 mA
DC loop current range: 110 mA; accuracy 2%, ±1 mA
Capacitance range: 1 µF; accuracy 3%, ±1 nF
Dimensions: 129 x 61 x 39 mm (5.1 x 2.4 x 1.5 in)
Weight: <450 grams (<1 pound)
Battery options: Standard alkaline AA or optional rechargeable NiMH
Test port: 2 mm banana
