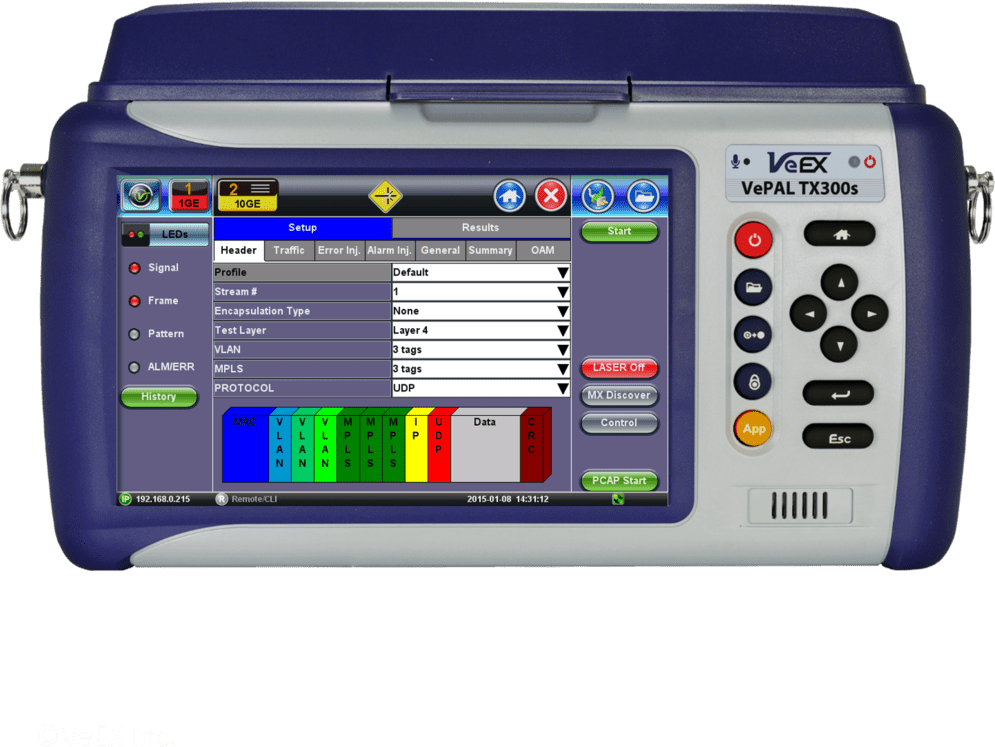

Portable Converged Networks Test Set - TX300s

VeEX® VePAL TX300s Family is a fully-integrated and self-contained multi-service test solution for OTN, SDH, SONET, PDH, DSn, Fibre Channel, Ethernet, Mobile Backhaul, CPRI/OBSAI and Fiber Optics networks. Equipped with SyncE, 1588v2 PTP, and CPRI/OBSAI test options, the unit offers unprecedented synchronization turn-up and troubleshooting test functions for mobile operators migrating to 4G LTE. Powered by the VeExpress™ system, TX300s users are able to share test options, either purchased or leased, with multiple devices, dramatically reducing Opex and Capex.



• All-in-One hardware platform reduces Capex
• The VeExpress ecosystem allows users to Buy, Rent, Lease-to-own and share test feature licenses
• Optimized for field engineers or technicians installing and maintaining OTN, SDH/SONET, Carrier Ethernet, Fibre Channel, CPRI/OBSAI and Fiber Optics networks transporting legacy and next generation services
• Flexible Software platform allows for multiple test applications running simultaneously

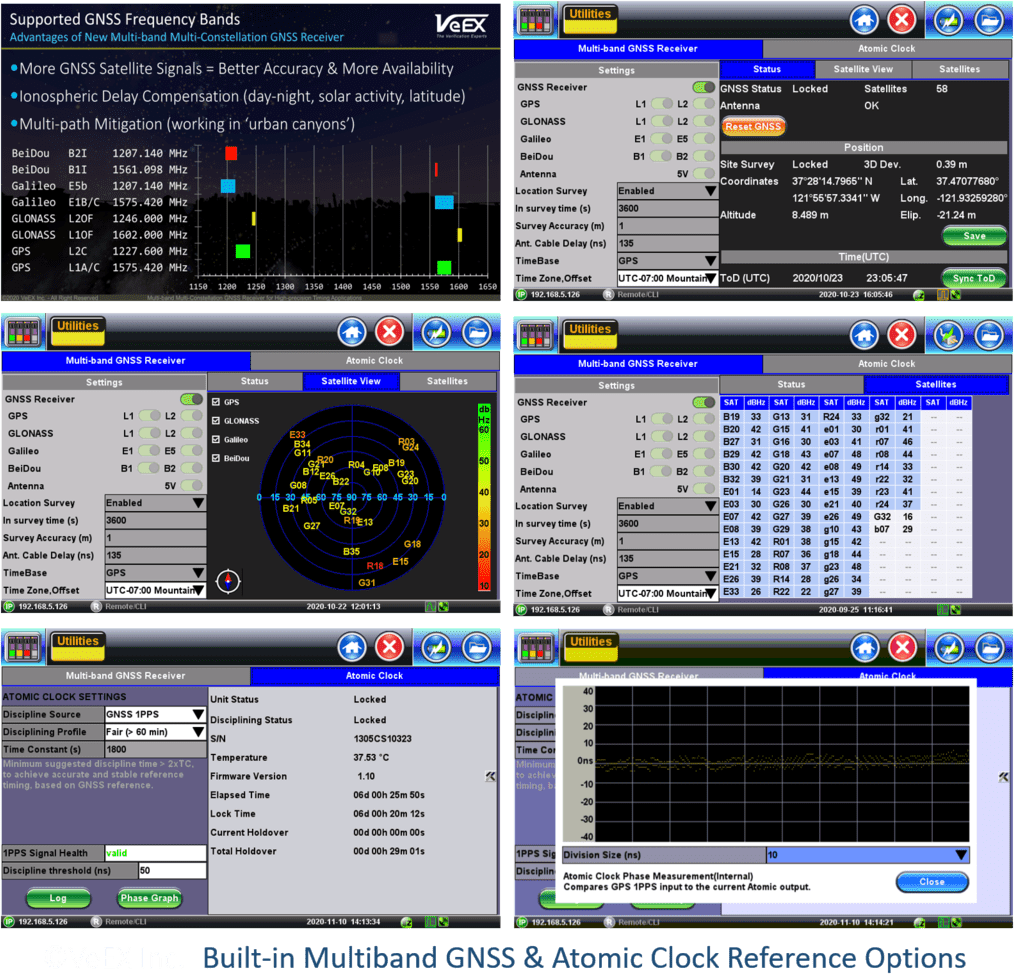

• GPS Receiver and built-in Atomic Clock reference options for frequency, phase and delay measurements
• Available in Single or Dual module versions and optional factory-installed OTDR
• Test set connectivity via Ethernet Management interface, Wi-Fi, Bluetooth®, or Data Card for back office applications and workflow optimization
• User defined test profiles and thresholds
• Fast and efficient test result transfer to USB memory stick
• Interchangeable Li-ion battery pack extends field testing time
• Asset Management: Maintain instrument software, manage test configurations, process measurement results and generate customer test reports using VeExpress

• Multi-service Testing
• Ethernet
• Fibre Channel
• OTN, SDH, SONET, PDH, DSn
• EoOTN
• CPRI/OBSAI (DAS)
• OTDR option
• OPX-BOX+ compatible
• Fiber Scope and add-on optical tools
• Wi-Fi Scan & Spectrum Analysis
• Frequency & Phase Synchronization
