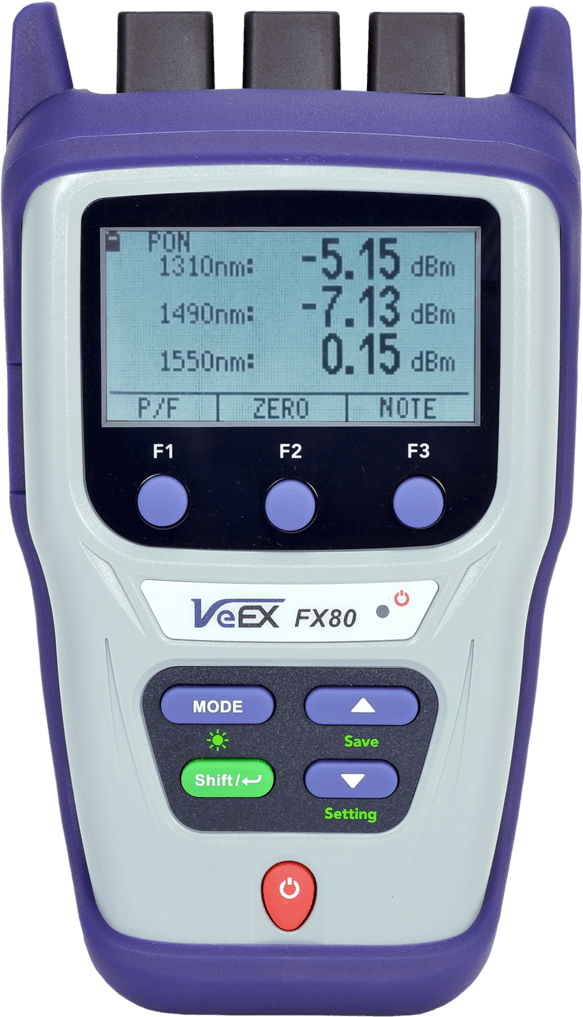

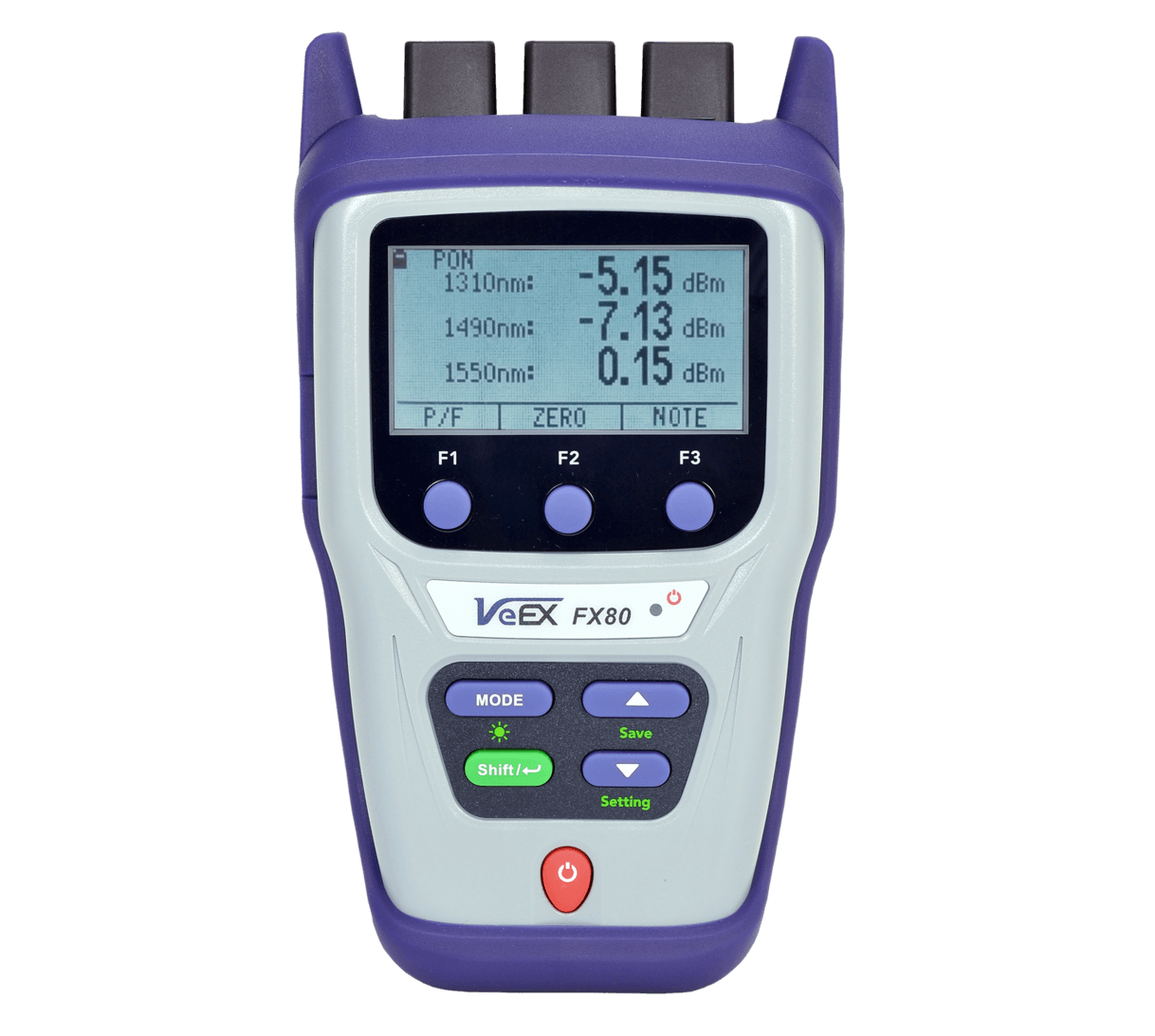

PON Optical Power Meter - FX80

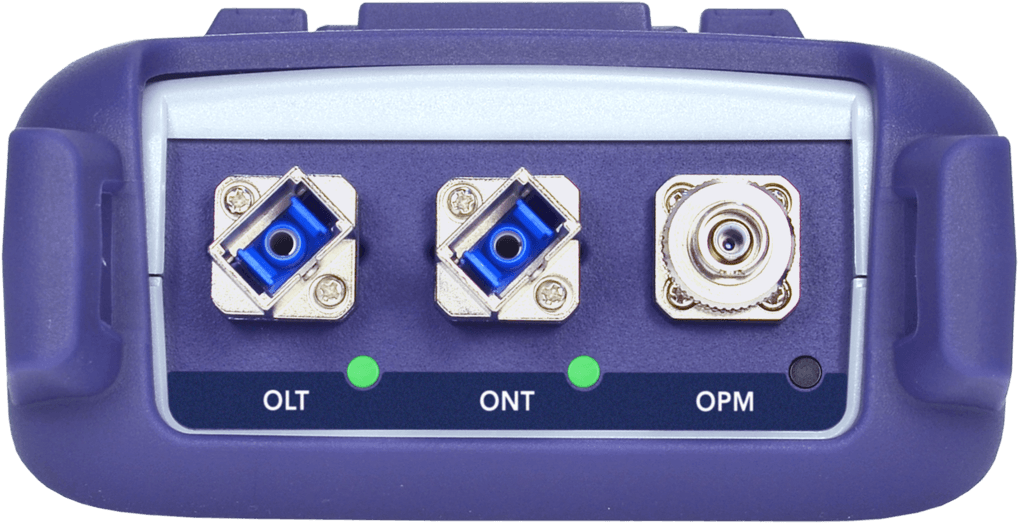

The FX80 is an in-Line optical power meter geared for FTTx/PON service activation. It simultaneously measures downstream signals to the ONT and upstream signals to the OLT.
Fiberizer™ software for Windows^® Desktop, Android™, and/or Apple^® mobile devices is available to assist in data transfer, record management, and report generation for various VeEX fiber optics testers.

Contact Now

Thông tin chi tiết sản phẩm

Đặc tính

Wavelength-selective level measurements:
GPON per ITU-T G.984.2
XG(S)-PON per ITU-T G.9807.1
EPON & 10G-EPON per IEEE 802.3av
RF video (RVO)
Calibrated wavelengths
GPON and EPON: 1310/1490 nm
XG(S)-PON and 10G-EPON and 1270/1577 nm
RF video (RVO): 1542 to 1562 nm
xPON Power Measurement range (Pass-through):
Burst mode at 1270 and 1310 nm: -35 to +10 dBm
CW mode at 1490 and 1577 nm:
-40 to +12 dBm for 4WL and 5WL
-45 to +13 dBm for 2WL
RF video (RVO) at 1550 nm: -40 to +25 dBm
Pass-through Insertion Loss: ≤1.5 dB
Optical Return Loss @ 1550 nm: ≥55 dB
Display resolution: 0.1 dB
Optional Broadband Optical Power Meter (BB-OPM)
Calibrated wavelengths (nm): 850/1300/1310/1490/1550/1625/1650
CW measurement range (dBm): -50 to +25

Đặc điểm kỹ thuật

Wavelength-selective level measurements for verifying B/E/GPON networks according to ITU-T G.983/4 and IEEE 802.3ah recommendations
Calibrated wavelengths: 1310/1490/1550 nm
FTTx PON Power Measurement range (Passthrough):
-40 to +10 dBm (1310 nm)
-40 to +12 dBm (1490 nm)
-40 to +25 dBm (1550 nm)
Burst measurement range @ 1310 nm: -35 to +10 dBm
Pass Through Insertion Loss: ≤ 1.5 dB
BB-OPM Absolute Accuracy: ± 0.5 dB
Linearity: ± 0.2 dB @ 1550 nm (≥ -40 dBm)
Optical Return Loss @ 1550 nm: ≥ 55 dB
Display resolution: 0.01 dB
Broadband (CW) measurement range:
- Standard (PM1) version: -65 to +10 dBm
- High (PM2) version: -50 to +25 dBm
Battery: Built-in, rechargeable Li-Polymer
Battery operating time (without backlight):
- Broadband OPM mode: > 80 hours
- FTTx PON mode: > 40 hours
