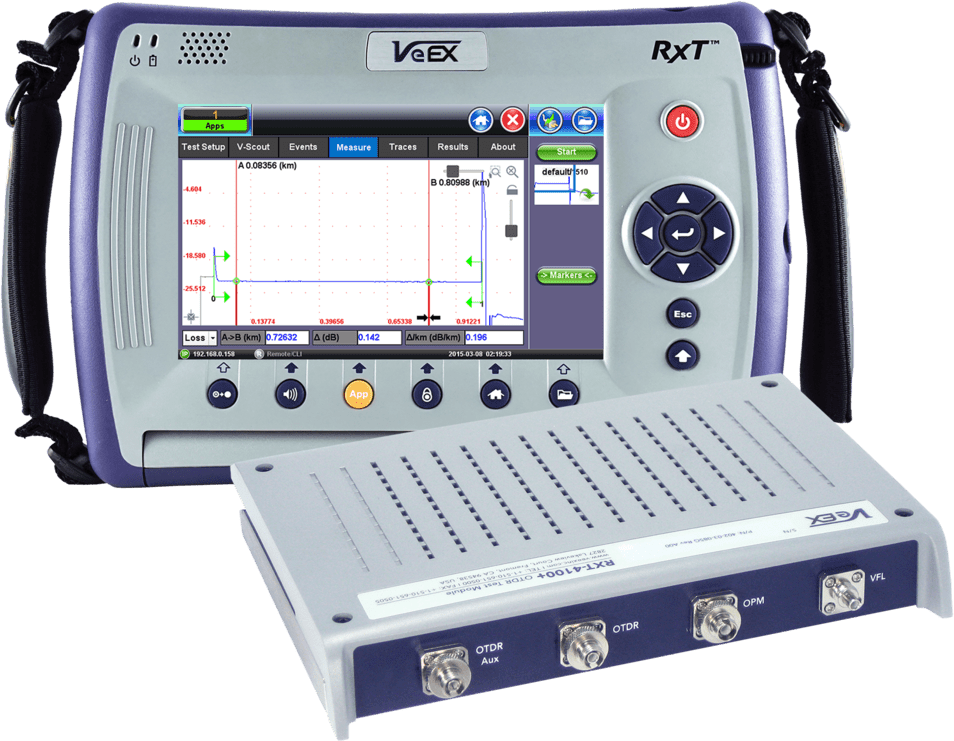

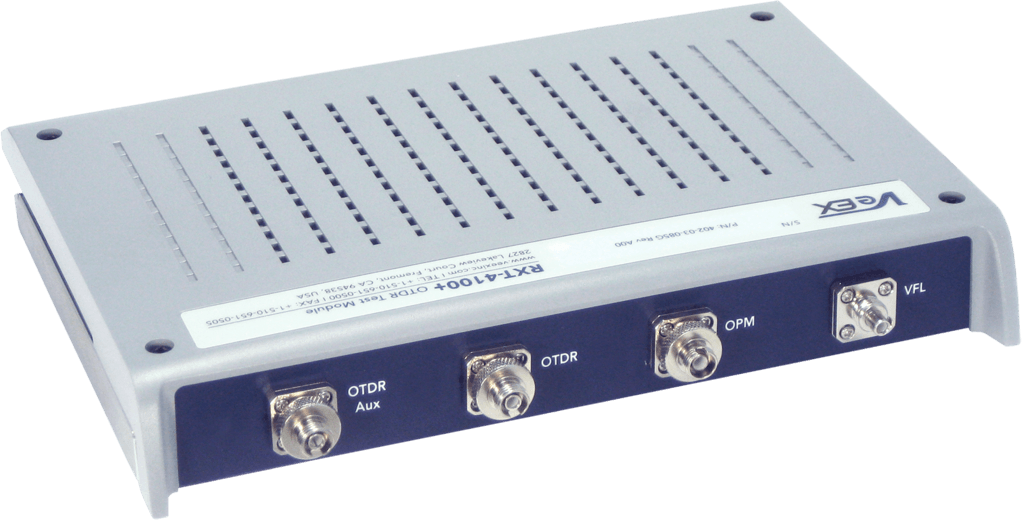

OTDR Module - RxT4100

FLATFORM HIGHLIGHTS
Software
Flexible modular architecture supports multiple technologies and applications
ReVeal™ PC software to maintain instrument firmware, manage test configurations, process measurement results and generate customer test reports
Fiberizer Desktop PC software for fiber trace analysis
Fiberizer Cloud based trace analysis and data management
R-Server support for centralized work force management and test results repository
Software
High resolution, 7” full color TFT touch-screen viewable in any lighting condition
Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth®, or 3G Card for back office applications
Intelligent fan operation with built-in temperature sensor
Interchangeable Li-ion battery pack for extended test time
USB-A Interface for USB flash drives and fiber inspection probe connection
Optional built-in GPS module for Geotagging OTDR traces

OPYICAL TESTING

• Multimode and Singlemode Wavelength options - 850, 1300, 1310, 1490, 1550, 1625 & 1650 nm
• Filtered 1625 or 1650 nm OTDR port for in-service measurements
• OTDR ports feature live fiber detection
• High dynamic range for long haul fibers and testing through high-count PON splitters
• Sampling points up to 500,000 (RXT-4100+)
• FTTx/PON optimized test parameters for best in class dead zones
• Event dead zone < 1m, Attenuation dead zone < 4m
• Telcordia GR-196 and SR-4731.sor file formats
• Optional V-Scout/V-Profile mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
• Optional Built-in Visual Fault Locator
• Optional Optical Power Meter with WaveID detection
• Optional Light Sources with WaveID and Loop mode
• Optional Fiber Inspection Scope (USB)
• Upload OTDR traces, OLTS results and Fiberscope images directly to Fiberizer Cloud
• Built-in G.657 launch fiber

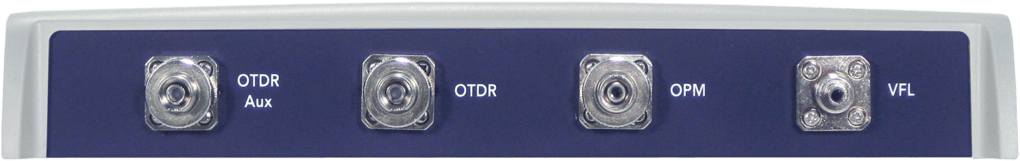

• Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
