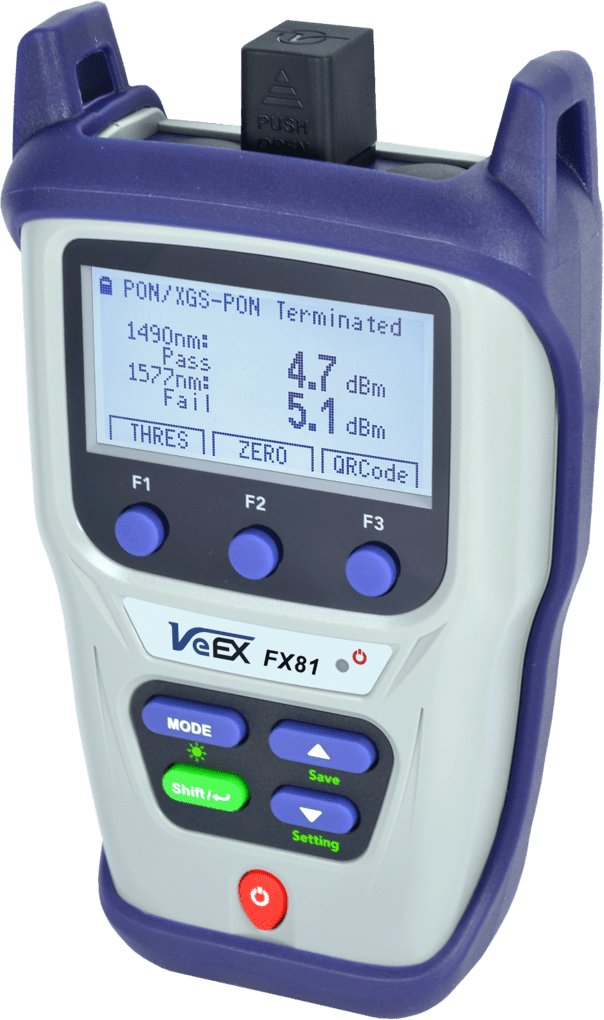

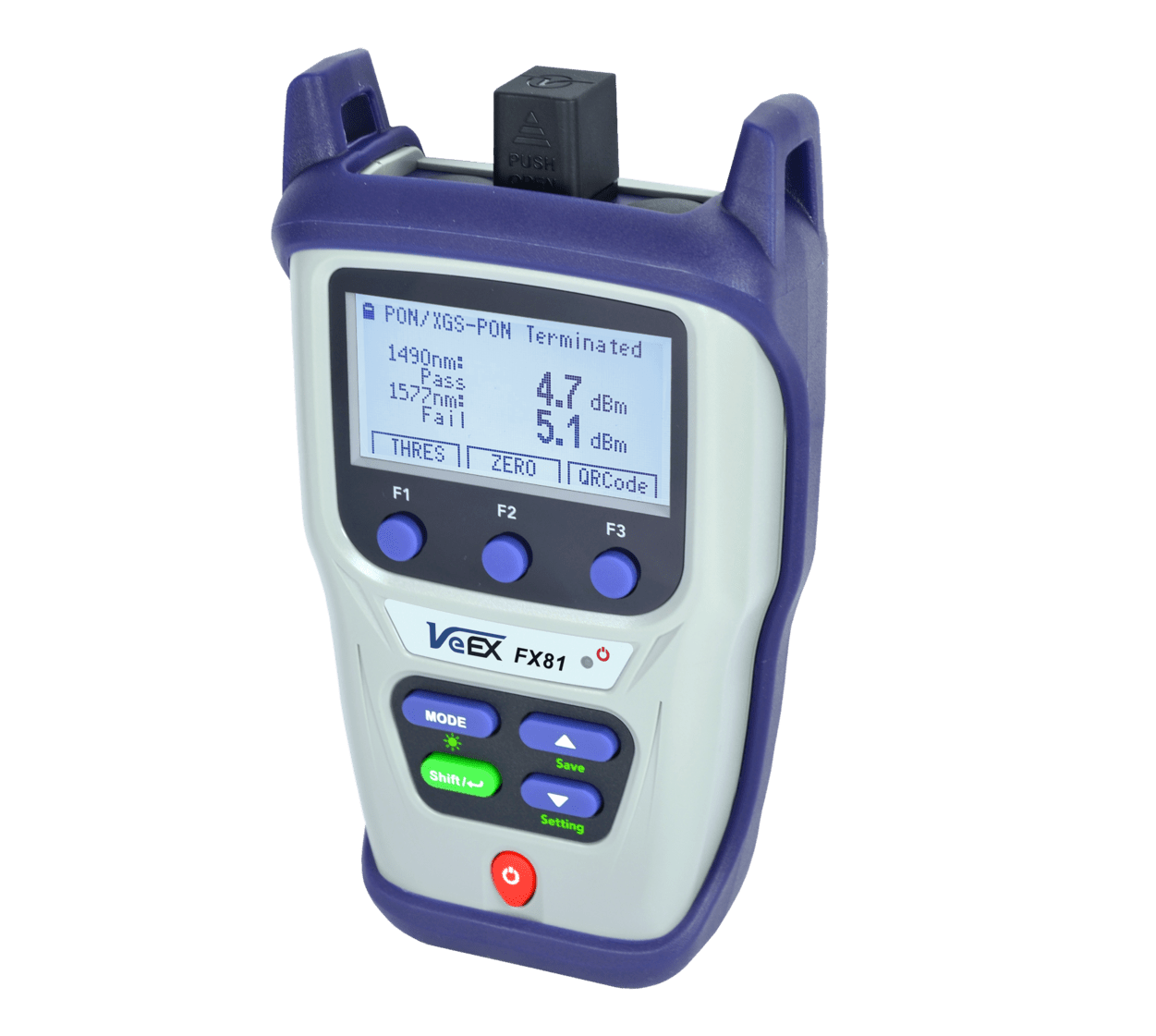

Optical Power Meters PON 1G/10G - VeEX FX81/FX81T

Optical power meter for installation, service activation and troubleshooting of B/GPON, XG(S)-PON, EPON and 10G-EPON fiber networks. Pass-through design to measure multiple downstream and upstream signals simultaneously for ONU/ONT verification or non-pass through/terminated OLT 1490/1577nm verification.

TÀI LIỆU DATASHEET

Contact

Thông tin chi tiết sản phẩm

Đặc tính

KEY FEATURES

Compatible with both GPON and EPON fiber networks
- GPON and XG(S)-PON test applications
- EPON and 10G-EPON test applications
3 models available:
- 2 λ non-pass-through/terminated DS: 1490/1577nm (FX81T)
- 4 λ pass-through DS: 1490/1577nm, US: 1310/1270nm
- 5 λ pass-through DS: 1490/1550/1577nm, US: 1310/1270nm
Concurrent measurements display

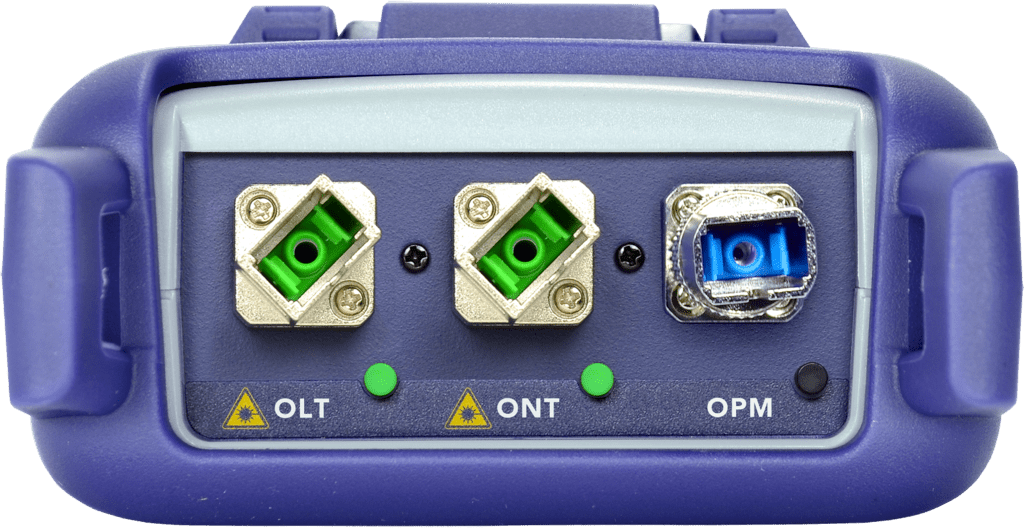

Fixed SC/APC Interface for ONU and OLT test ports
Programmable thresholds with Pass/Fail indication
Optional broadband power meter with universal adapters
- WaveID support when paired with compatible VeEX source
Non-volatile storage for 1920 measurements
Flexible data transfer, test result management and report generation options using:
- LT-Sync PC software (microUSB or optional Bluetooth)
- Fiberizer™ Mobile OLTS software (microUSB or Bluetooth)
- Fiberizer™ Desktop Plus or Fiberizer™ Cloud
High contrast LCD - visible outdoors, programmable backlight for indoor or low light conditions
Battery: Built-in, rechargeable Li-polymer
Battery operating time (with backlight):
- FTTx PON mode: >25 hours

KEY SPECIFICATIONS

Wavelength-selective level measurements:
- GPON per ITU-T G.984.2
- XG(S)-PON per ITU-T G.9807.1
- EPON & 10G-EPON per IEEE 802.3av
- RF video (RVO)
Calibrated wavelengths
- GPON and EPON: 1310/1490 nm
- XG(S)-PON and 10G-EPON and 1270/1577 nm
- RF video (RVO): 1542 to 1562 nm
xPON Power Measurement range (Pass-through):
- Burst mode at 1270 and 1310 nm: -35 to +10 dBm
- CW mode at 1490 and 1577 nm:
  - -40 to +12 dBm for 4WL and 5WL
  - -45 to +13 dBm for 2WL
- RF video (RVO) at 1550 nm: -40 to +25 dBm
- Pass-through Insertion Loss: ≤1.5 dB
Optical Return Loss @ 1550 nm: ≥55 dB
Display resolution: 0.1 dB
Optional Broadband Optical Power Meter (BB-OPM)
- Calibrated wavelengths (nm): 850/1300/1310/1490/1550/1625/1650
- CW measurement range (dBm): -50 to +25
