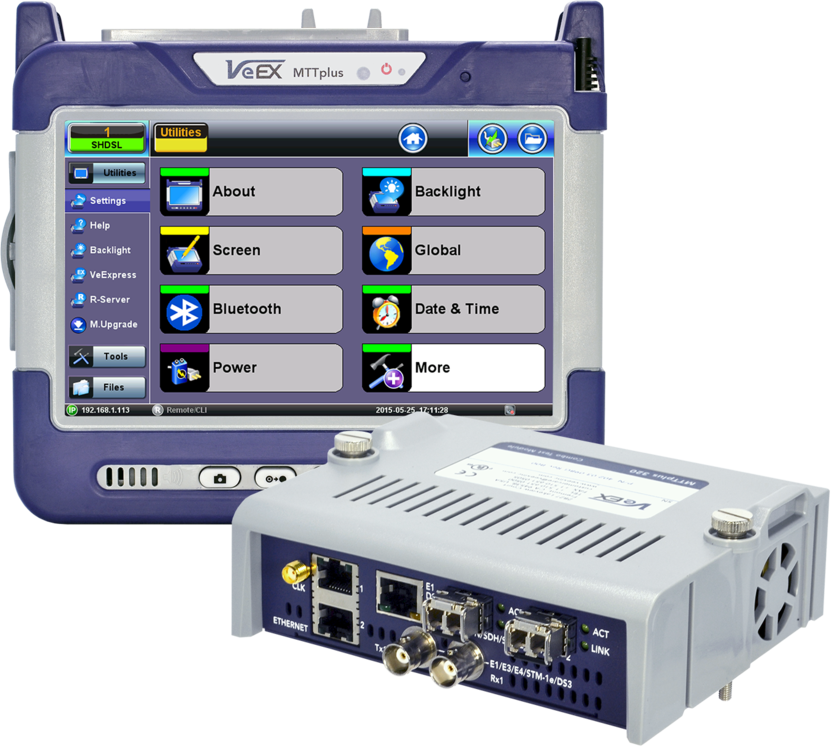

The MTTplus-320 Multi-Service Module is a full-featured test solution for OTN, SONET, SDH, PDH, DSn, 64k Codirectional, C37.94, Carrier Ethernet, Fibre Channel, SyncE, PTP and CPRI/OBSAI.
GENNERAL
All-in-one multi-service test solution, from 64 kbps to 10 Gbps
Transport, Core, Metro, SAN, Backhaul and Fronthaul applications
Supports independent and simultaneous measurements
OTN/SDH/SONET/PDH/DSn
Advanced flexible OTN, SDH/SONET, PDH/DSn test payload map/mux, including EoOTN support (ODU0 and ODUflex)
Overhead Monitoring and Byte decoding
Automatic Protection Switching and Service Disruption
Round Trip Delay on all interfaces and payload mappings
Tandem Connection Monitoring
Jitter and Wander (E1, E3, DS1, DS3, STM-1o, OC-3)
Non-intrusive Pulse Mask Analysis at E1, E3 and DS1, DS3 rates
FIBRE CHANNEL
Storage Area Networks (SAN) testing
BERT and Throughput test
RFC2544: Throughput, latency, frame loss, back to back tests
Layer 1 and layer 2 loopbacks
CPRI/OBSAI Testing
Common Public Radio Interface standard (CPRI): Unframed, Layer 1 Framed and Layer 2 tests (REC/BBU and RE/RRH emulation)
Open Base Station Architecture Initiative (OBSAI): Unframed tests
BER testing with PRBS stress patterns
Latency measurements
SCADA and Teleprotection
IEEE C37.94 Testing
Terminal and bidirectional pass-through monitor modes
64k to 768k (N: 1 to 12)
BERT, Alarms and Round Trip Delay
GPS-assisted one-way-latency (asymmetry)
MMF and SMF optical interfaces
G.703 64k Codirectional Testing
Terminal mode
BERT, Alarms and Round Trip Delay
ETHERNET
RFC2544 Throughput, latency, frame loss and back to back tests
V-SAM test suite compliant with ITU-T Y.1564 standard
IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, MPLS-TP OAM support
Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB support
RFC6349 V-PERF TCP test suite
Layer 2 Control Protocol Transparency test
In-service monitoring with frames capture and on-screen protocol decode
One way latency with optional built-in GPS
Fully integrated solution for synchronized packet networks
Supports IEEE 1588v2/PTP and SyncE/ITU-T G.8261 standards
Master Clock and Slave clock emulation
IEEE 1588v2/PTP protocol monitor & decode, and PDV analysis
Clock recovery from SyncE or PTP and output to physical port
Wander measurement and MTIE/TDEV analysis
ESMC SSM generation, monitoring, and decoding
VoIP and IPTV testing
