Multi-Gigabit Internet Services & Ethernet - VeEX MTX150x Lite

• The smallest and most powerful test set with native RJ45 1G/2.5G/5G/10GBASE-T and 1G/10GBASE-X QoE test solution on the market. No adapters required
• Operation up to 10 Gbps optical and electrical
• Self-contained and Secure. No additional tablet, smartphone or apps required
• Optimized for field technicians installing, verifying, troubleshooting and maintaining Carrier Ethernet, Business and Gigabit Residential Internet Services
• Field upgradeable licenses to optimize OPEX. Add optional feature like 2.5G, 5G or 10GBASE-T when required
• VeSion® R-Server asset, workflow and results management
• Compatible with VeEX EZ Remote™ collaboration services
• Remote access and control via Web Browser, VNC® client and ReVeal PC software
• Comprehensive local test set connectivity via micro-B USB and optional built-in WiFi and Bluetooth® wireless interfaces; USB-A and 10/100BASE-T are also available via standard OTG cables (LAN adapter not included)
• User defined test profiles and thresholds enable fast, efficient, and consistent turn-up of services
• Fast and efficient test result transfer to USB memory stick
• Fast bootup – ready to test in less than 60 seconds
• Li-ion battery pack for extended field-testing autonomy

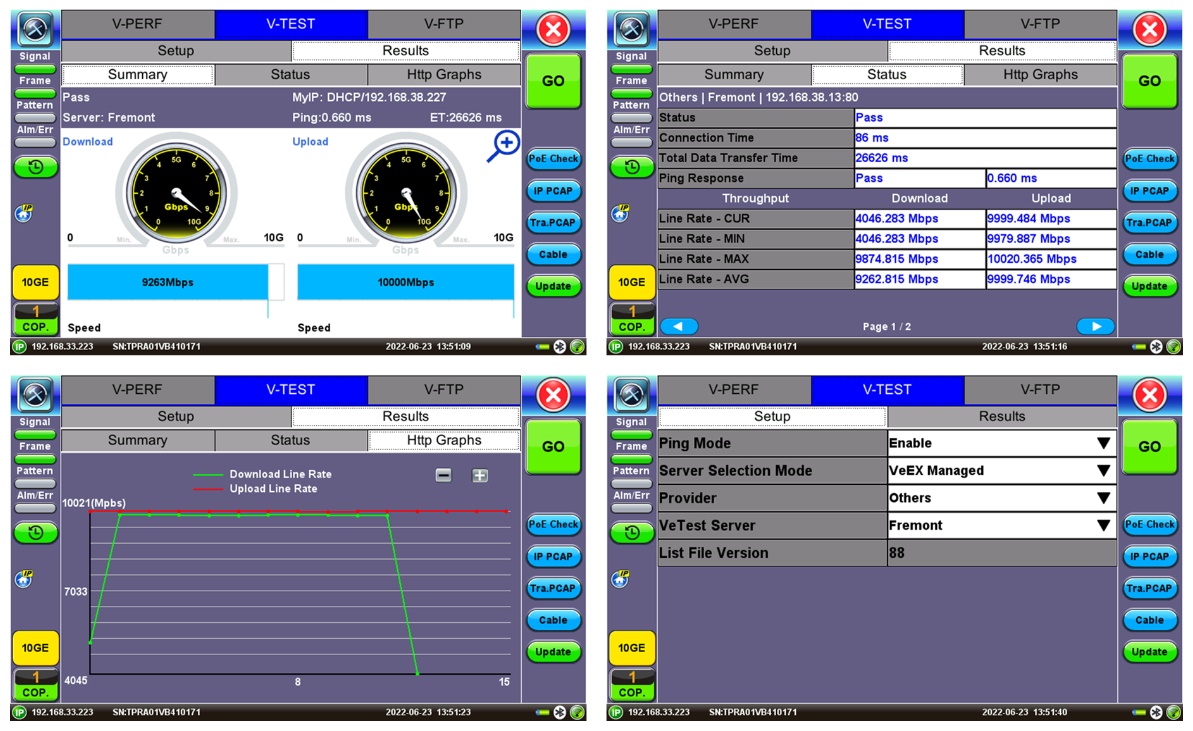

• V-TEST Throughput Test Supports VeEX Mode and Speedtest Powered™ Mode based on Ookla® technology
• V-PERF, support of RFC6349
• SFP+ test interface for 100/1000BASE-X and 10GBASE-R
• Built-in RJ45 test with PHY for 10/100/1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T (no adapters required)
• Automatic IP acquisition via DHCP
• Fast boot-up time, ready to test in less than 60 seconds
• PoE detection
• CAT X Cable Checker (Cat 6a/7)

ETHERNET

• IPv4/IPv6 and PPPoE, DHCP and static IP
• Ping, trace route, Packet Capture (PCAP) and built-in Wireshark decoding
• Complete Layer 4+ test suite: V-TEST (Ookla® Speedtest®), V-PERF (RFC6349), V-FTP upload & download tests

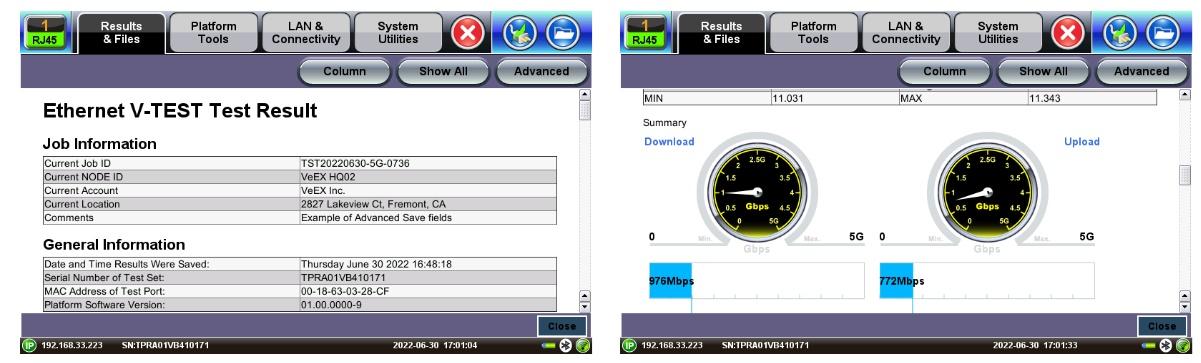

PROFESIONAL REPORT

This companion management PC software is included standard with each test set. The ReVeal provides an easy-to-use and  intuitive interface that allows users to take full advantage of

MTX150x_LITE test sets by providing  the following productivity tools:

•  Convenient test profile management

•  Flexible test results management

•  Advanced report generation with html, pdf, or csv  formats, combine test results, add logos and comments

•  Test profiles management: Online or offline Ethernet test  profile creation, upload and download
