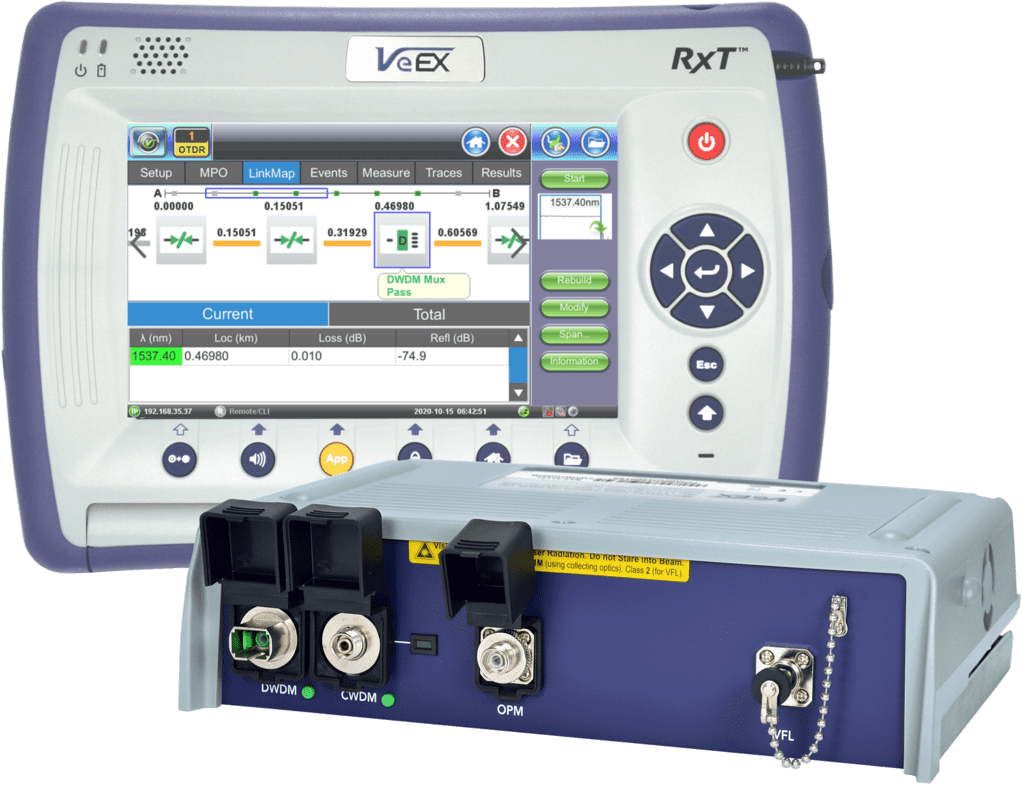

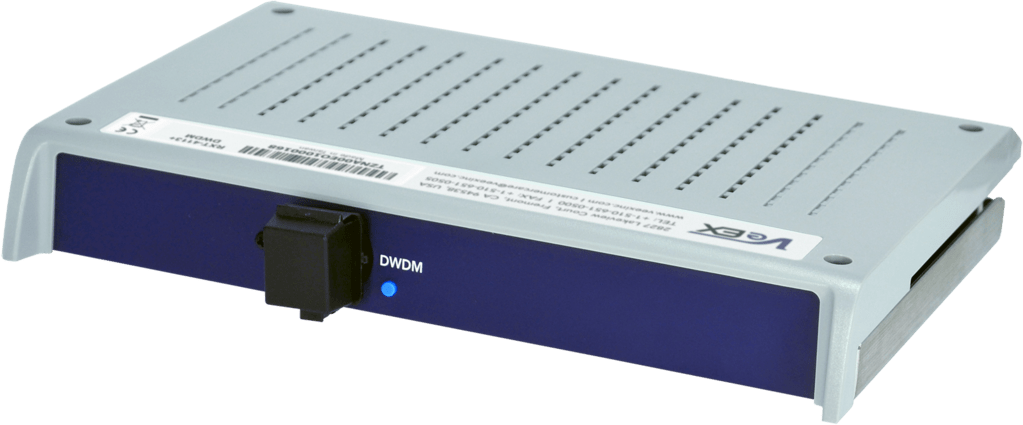

Module đo OTDR xWDM - RxT4113

The RXT-4113+ is our new generation xWDM OTDR module. Users can now select CWDM only, DWDM only or both CWDM and DWDM testing options. CWDM and/or DWDM (C-band) wavelength tuning, 3 cm resolution and up to 500,000 data points offers unprecedented network characterization for Fiber Deep, RPD, DAA and other xWDM test applications. The ability to perform attenuation profiling and verify end-to-end connectivity using a single ended test approach ensures maximum productivity.

DATASHEET

Liên hệ tư vấn

Thông tin chi tiết sản phẩm

Đặc tính

HIGHLIGHT

Software

Advanced software architecture supports multiple test applications
VeExpress™ Cloud or Enterprise versions to maintain instrument firmware and manage test options or inventory
EZ Remote software for flexible remote control and software upgrade
Fiberizer® Desktop+ PC software for advanced trace analysis and report generation
Fiberizer® Cloud trace analysis and data management
R-Server compatibility for centralized work force management and test results repository
Optional fiber inspection scope (USB) with single or multi-fiber (MPO/MTP®) support

Hardware

High resolution, 7” full color TFT touch-screen viewable in any lighting condition
Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth®, or 3G/LTE for back office applications
Intelligent fan operation with built-in temperature sensor
Interchangeable Li-ion battery pack for extended test time
USB-A Interface for USB flash drives, USB wireless dongles and fiber inspection probe connection
Optional built-in GPS module for Geotagging OTDR traces

KEY FEATURES

Optical

CWDM wavelengths per ITU-T G.694.2 (8, 10, or 18 channels)
DWDM wavelengths per ITU-T G.694.1 (C-band, 1527.99 to 1563.86 nm, Channel #s 17-62) in 50, 100 or 200 GHz steps. Optional extended channel 14-62 available.
Sampling resolution up to 500,000 points
Event dead zone <0.8m, attenuation dead zone <3m
Built-in DWDM wavelength locker with ±2.5 GHz stability
High dynamic range for long haul fibers and testing through xWDM Mux/demux
TEC laser stabilization for operation in hot and cold weather conditions
Telcordia GR-196 and SR-4731.sor file formats
Optional V-Scout mode – Smart Link Mapping using intuitive icons derived from multiple test acquisitions
Optional CWDM/DWDM Light Source via OTDR port
Optional broadband Optical Power Meter
Optional VFL 650 nm light source
Built-in launch fiber to characterize OTDR connections and short fiber spans

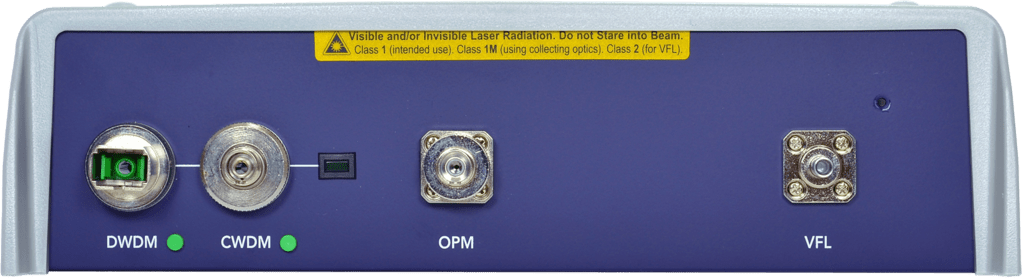

Fixed connector or universal 2.5 mm optical interface with inter-changeable optical adaptors (SC/FC/LC)
