PLATFORM HIGHLIGHT

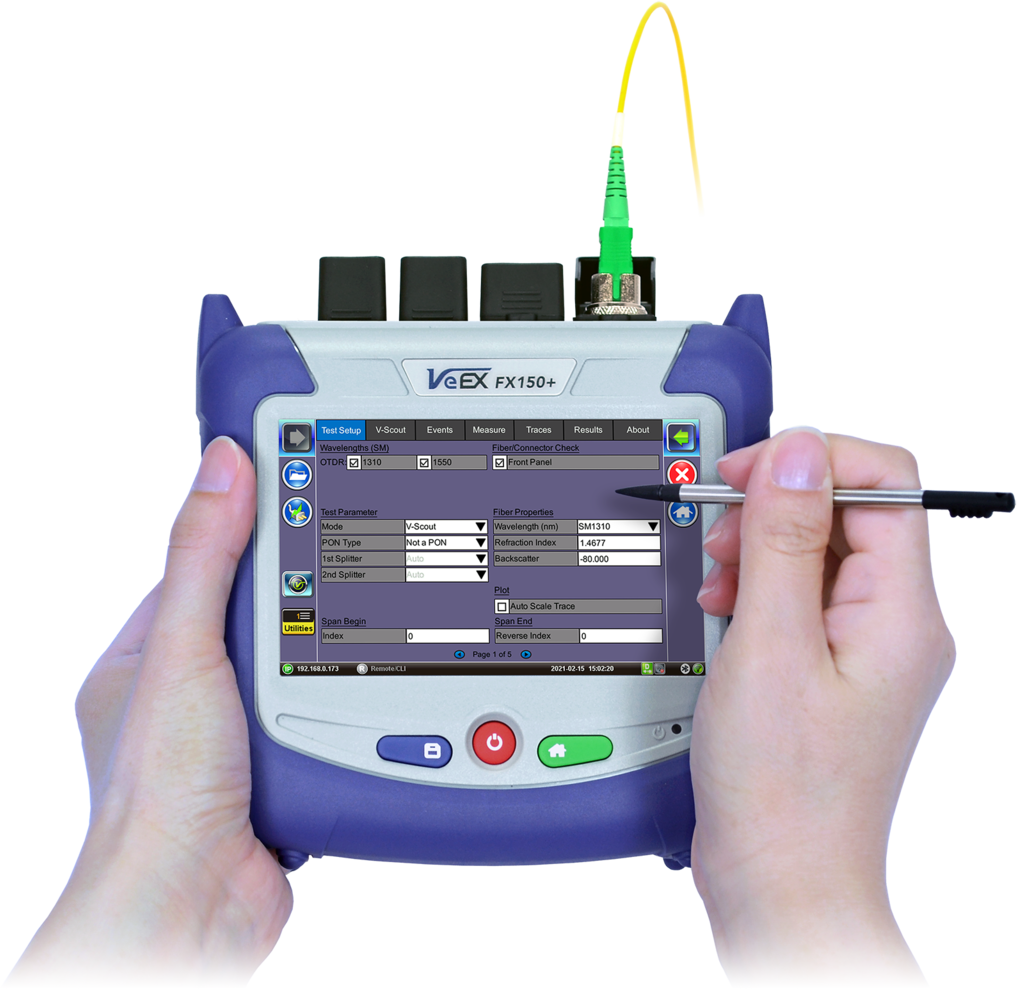

Robust, handheld design for demanding field test conditions
High resolution, 5” TFT color touch-screen suitable for both indoor and outdoor use
Fast boot-up for fiber troubleshooting and restoration
Intuitive display, function keys and touch-screen for fast navigation and easy operation
Internal data storage
Micro-USB OTG interface for flash drives, fiber inspection probe connection and test data transfer
Rechargeable Lithium Polymer battery with capacity indicator, low voltage alarm and Auto-off function
Continuous operation >9 hours without recharging batteries
Built-in WiFi option:
Perform software upgrades using Windows® PC
Upload test data to Fiberizer® Cloud via Internet connection
Connect wirelessly to Fiber Inspection Microscope
Built-in Bluetooth® option:
Pair with mobile devices/Windows® PC to transfer test results
KEY FEATURES
Supports up to 4 wavelengths including Quad MM/SM
MM: 850, 1300 nm
SM: 1310, 1490, 1550, 1625 and 1650 nm
Dynamic range up to 45 dB
Testing long Point-Point fiber links up to 180 km (110 miles)
Testing single or cascaded PON up to 1:128 splitter ratios
Optimized dead zones (DZ) for FTTx/PON applications
Event 0.8 m, Attenuation 3.5 m typical
PON ≤16.5m (13 dB loss, 100ns PW, non-reflective splitter)
Filtered OTDR port for in-service testing at 1625 or 1650 nm
12 fiber ribbon testing using optional OPX-MPO12 switch
Live fiber detection with embedded power meter
Telcordia SR-4731.sor file format
Generate and save results in sor, png or pdf formats
Auto mode - setup, events detection, and trace diagnostics
V-Scout option – Smart Link Mapping derived from multiple test acquisitions and displayed using intuitive icons
Markers for distance, attenuation, reflectance and splice loss measurements
Fixed or Universal interface option with interchangeable optical adapters (SC, ST, FC) for OTDR port
Power meter, light source, fiber inspection probe, and VFL
Remote measurement using, EZ Remote, VNC or built-in web based software
