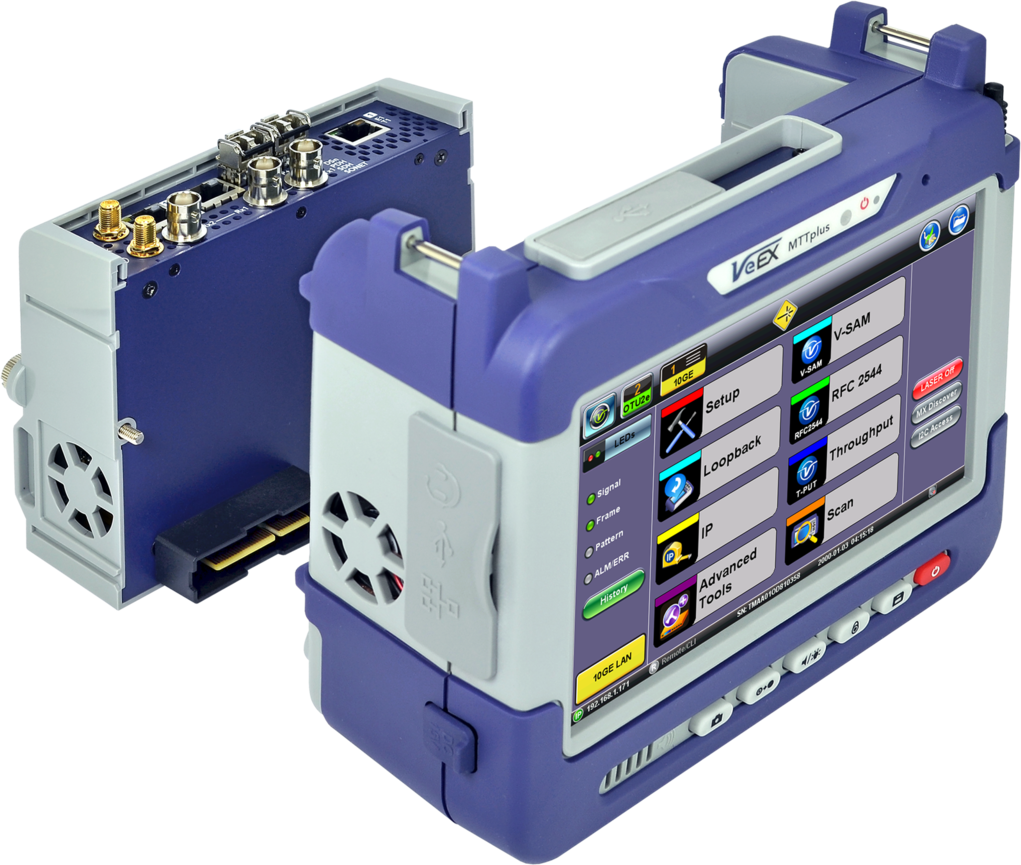

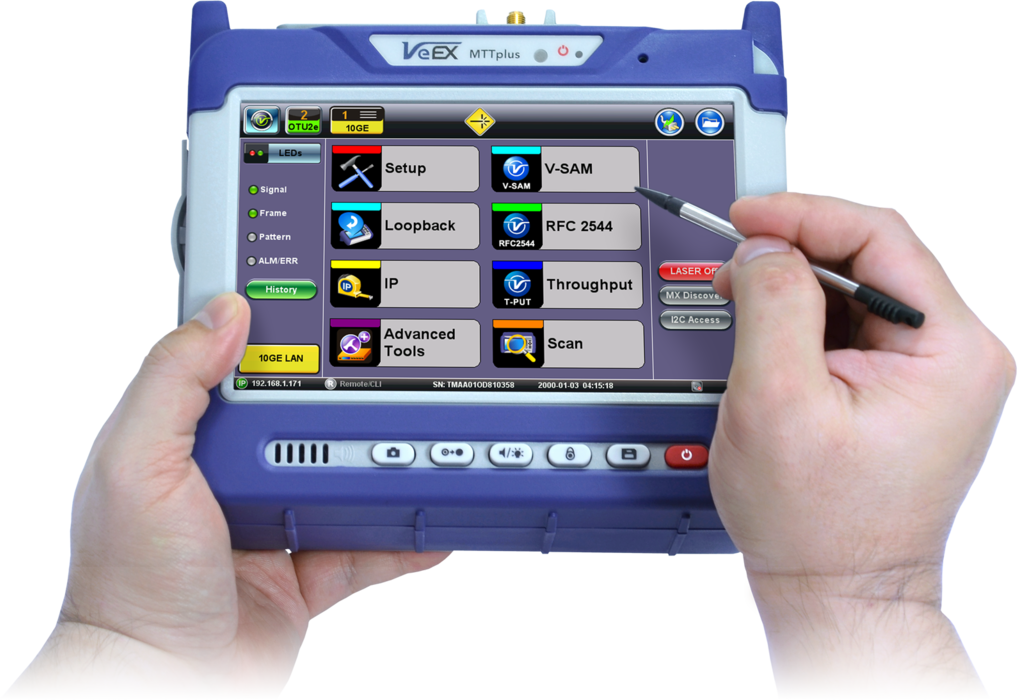

Máy kiểm tra mạng đa dịch vụ VeEX MTTPlus-340

• Flexible, all-in-one multi-service test solution, from 64 kbps to 14 Gbps
• Transport, Core, Metro, SAN, Backhaul, Fronthaul and Network Synchronization
• Offers two fully independent test ports for simultaneous measurements

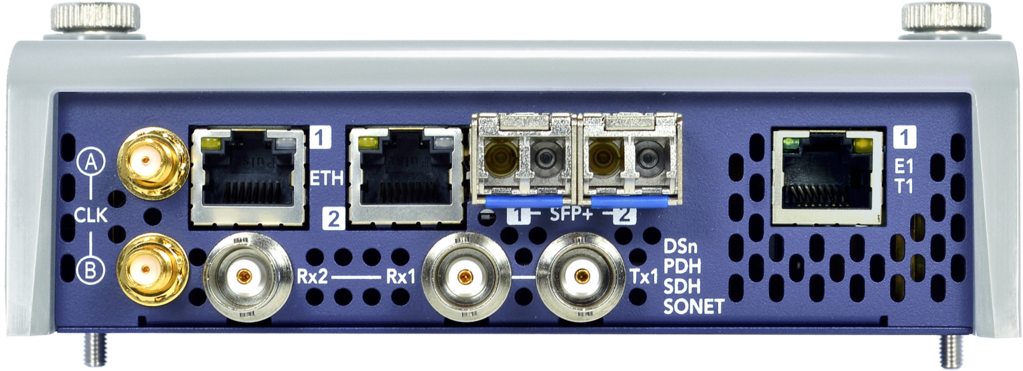

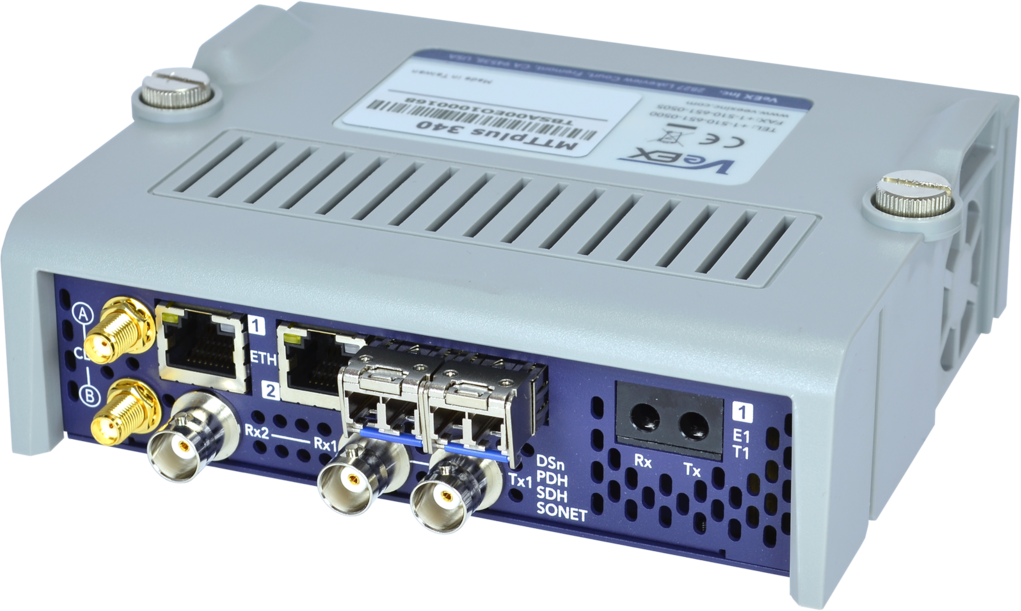

1Balanced ports available in RJ48 or Bantam connector.

2Tx1, Rx1, and Rx2. Rx2 port may be available for monitoring applications.

Ethernet

• RFC 2544 Throughput, latency, frame loss and back to back tests
• V-SAM test suite compliant with ITU-T Y.1564 standard
• IEEE 802.3ah, ITU-T Y.1731, IEEE 802.1ag, MPLS-TP OAM support
• Q in Q (VLAN stacking), MPLS, MPLS-TP, PBB support
• RFC 6349 V-PERF TCP/UDP test suite
• Layer 2 Control Protocol Transparency test
• Advanced tests: IP Sec, LACP, L2CP, NAT Traversal
• In-service monitoring with packet capture and on-screen protocol decode
• One way latency with optional built-in GNSS receiver
• Fully integrated solution for synchronized packet networks
• Supports IEEE 1588v2/PTP and SyncE/ITU-T G.8261 standards
• Master Clock and Slave clock emulation
• IEEE 1588v2/PTP protocol monitor & decode, and PDV analysis
• Wander measurement and MTIE/TDEV analysis
• Wander measurement and MTIE/TDEV analysis
• VoIP and IPTV testing

Fibre Channel

• Storage Area Networks (SAN) testing up to 16G FC
• BERT, Throughput, and RFC 2544 test
• RFC 2544: Throughput, latency, frame loss, back to back tests
• In-service monitor, capture and protocol decode
• Layer 1 and layer 2 loopbacks

CPRI Testing

• Common Public Radio Interface standard (CPRI) Layer 2 tests (REC/BBU and RE/RRH emulation)
• BER testing with PRBS stress patterns
• Latency measurements

OTN/SDH/SONET/PDH/DSn

• Advanced flexible OTN, SDH/SONET, PDH/DSn test payload map/mux, including EoOTN (ODU2e, ODU0 and ODUflex)
• Overhead Monitoring and Byte decoding
• Protection Switching and Service Disruption Time (SDT)
• Round Trip Delay on all interfaces and payload mappings
• Tandem Connection Monitoring
• Jitter and Wander (E1, E3, DS1, DS3, STM-1o, OC-3)
• Pulse Mask Analysis at E1, E3 and DS1, DS3 rates

PRODUCTS.MTTPLUS340.LIST1.HEADER5

• Power/Utilities Teleprotection Network testing
• BERT, SDT/APS, RTC and transparency tests
• Passive bidirectional Monitoring and intrusive Pass-Through modes
• GNSS-assisted One-Way-Delay measurements
• Jitter and Wander Measurements
