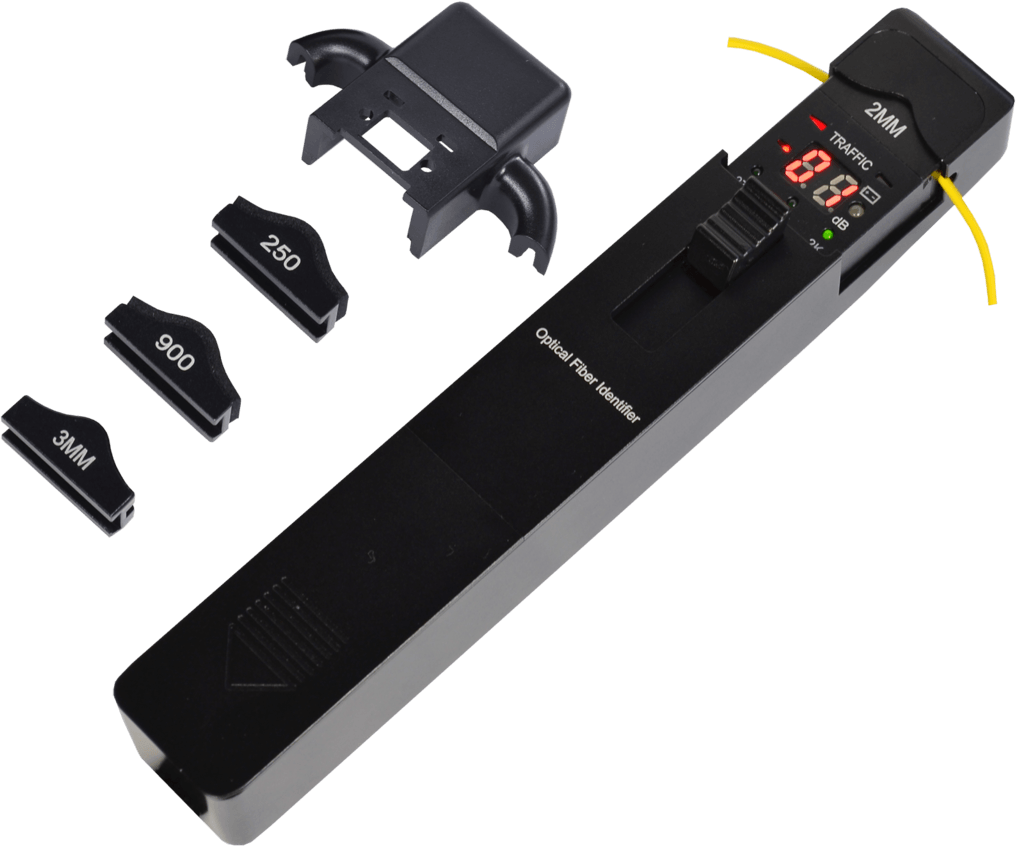

Live Fiber Identifier - FX15

HIGHLIGHT

Easy to Use
Traffic direction indicator
Signal readout
Tone detection LEDs (270 Hz, 1/2 kHz) with audible warning
Sunshade cover
Slide-on fiber chuck adapters
Rugged, metal design
Low power indicator
Works with G.652, G.655, and G.657 fiber types
Works with primary coated and ribbon fiber (250 μm) as well as 900 μm tight buffer, and 2/3mm jacketed cables

SPECIFICATIONS

Wavelength Range: 800 - 1700 nm
Detector Types: Dual 1 mm InGaAs
Signal Detection Types**: CW, 270 Hz, 1 kHz and 2 kHz
Insertion Loss (typ): 0.8 dB/2.5 dB @ 1310/1550 nm
Direction Indicator**:
-1310 nm (10 to -46 dBm)
-1550 nm (10 to -50 dBm)
CW Level Measurement Range**: -50 to +10 dBm
Tone Level Detection Range**: -25 to 0 dBm
Tone Detection Frequency Limit: 5%
Battery Type: 9 V DC (alkaline) included
Operating Temperature: -10 to +60˚C (14 to 140˚F)
Storage Temperature: -25 to +70˚C (-13 to 158˚F)
Dimension: 196 x 30.5 x 27 mm (7.72 x 1.2 x 1.06 in)
Weight: 200g (0.44 lb) including battery
* Note: All specifications are valid at 23˚C ± 2˚C (73.4˚F ± 3.6˚F)
** Testing using CW signal with 900 μm fiber type
