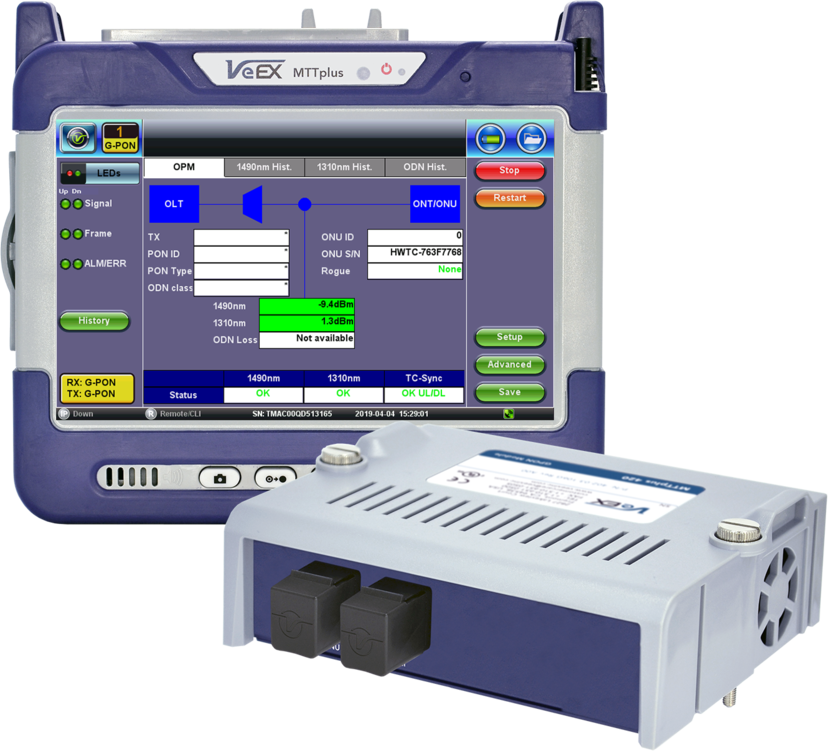

MTTplus MAINFRAME
Modern, modular test platform with a growing range of available test modules covering legacy and modern Access (copper and fiber), FTTx, Metro, Carrier Ethernet and Transport technologies
Application-oriented GUI
Multi-technology: xDSL, Fiber Optics, Teleprotection, Datacom, DSn/PDH, SONET/SDH, OTN, Ethernet, Fibre Channel, CPRI/OBSAI
Expand test functions with a growing list of test modules
Future-proof cost-effective platform
The optional MTT® carrier module brings forward compatibility to popular MTT test modules, protecting the original investment and facilitating easy transition
GUI familiarity across different test modules and other VeEX products reduces learning curve
Test set connectivity via USB, Ethernet, WiFi and Cellular
Four USB ports (3x USB A and 1x micro-USB B)
Fast and efficient test result transfer to USB memory stick
Built-in GPS option
Built-in Camera option for job site documentation, QR and bar codes
Small package and light weight
Field replaceable battery pack
Large 7-inch LCD Touch Screen and ambient light sensor
8 GB storage standard
BASIC MODE

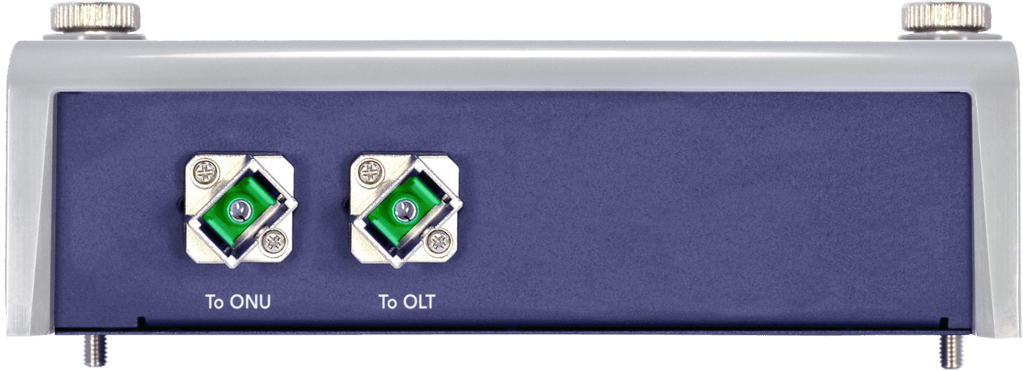

Two Port pass-through test mode for measuring downstream and upstream levels
Three configurations available:
1310 / 1490nm
1310 / 1490 / 1550nm
1310 / 1490 / 1577nm
Simultaneous display and measurement of calibrated PON signals
Automatic ODN class detection and power-level pass/fail analysis
Rogue ONT detection
Low insertion loss : ≤ 1.5 dB typ.
User defined Pass/Fail thresholds
Automated pass/fail fiber inspection analysis with optional fiberscope
Easy Report generation and data transfer
Upstream/Downstream LED status indicators for signal, Frame, Err/Alarm and TC Sync
EXPERT MODE
PLOAM advanced ONU information
Display OLT TX, PON Type, and Budget
Common upstream and downstream Error detection: LOS, BIP, FEC, etc.
GPON Wizard for commission report
List all active ONT IDs and serial numbers
PLOAM decoder and display PLOAM Control messages
OMCI decoder and display OMCI messages
