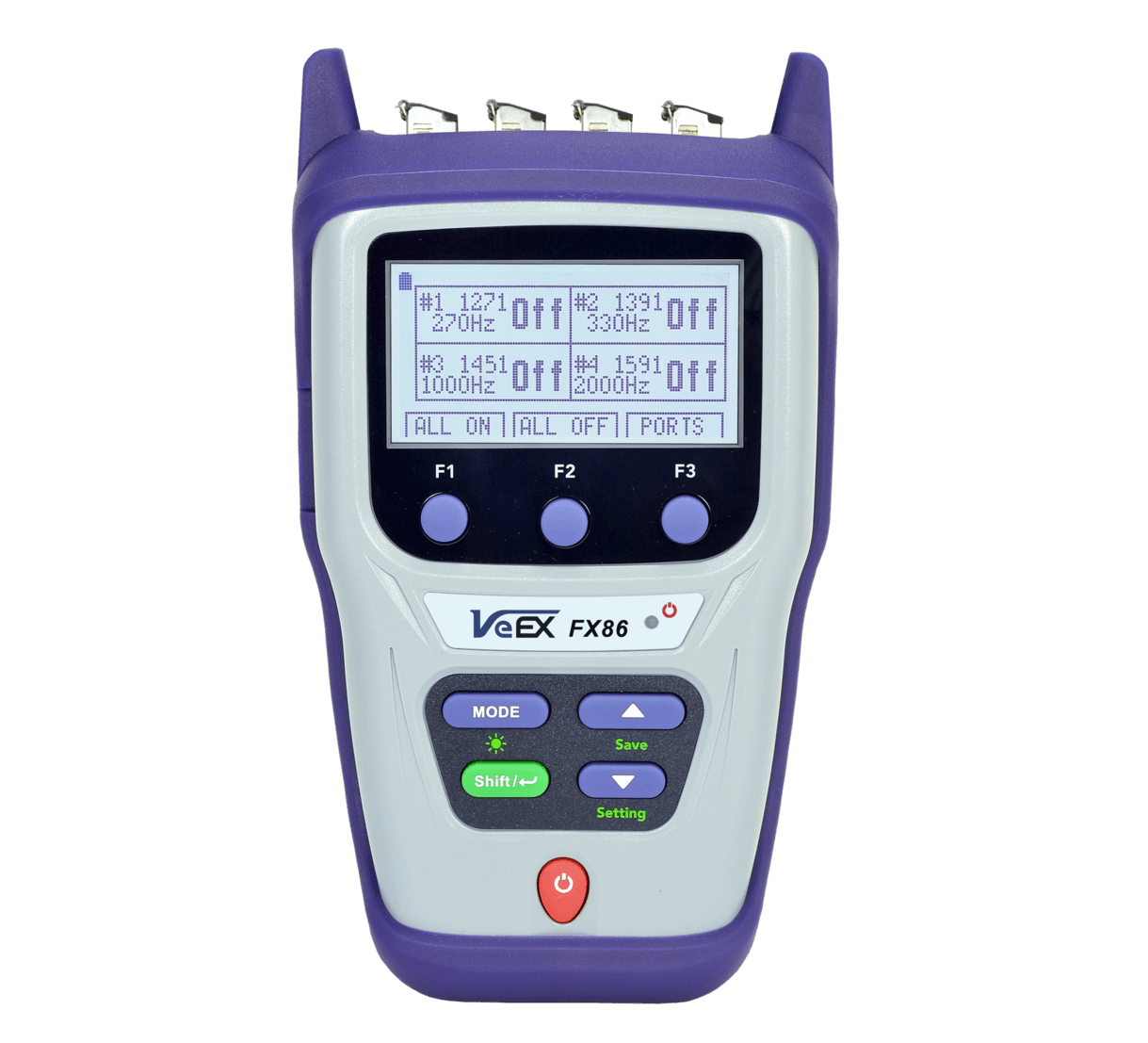

CWDM Quad Laser Source - VeEX FX86

The FX86 is a four port laser source used to verify, install and commission CWDM and PON networks. Verify wavelength routing and troubleshoot passive CWDM network elements or verify multiple PON drops with unique identifiers. Optimized for Access & Metro CWDM or PON test applications.

DATASHEET

Contact

Thông tin chi tiết sản phẩm

Đặc tính

HIGHLIGHT

Low Cost, handheld user configurable CWDM Laser Source
Fast boot-up time and laser stabilization (< 5 seconds)
Supports any combination of four CWDM wavelengths
Can be used with Fiber Identifiers
Can be used with Fiber Identifiers
Output connectors equipped with hinged dust and protection shutter that automatically covers test port
Monochrome LCD, 128 x 64 pixels, LED backlight display
Li-Polymer rechargeable battery, > 4 hours operation
Rugged Polycarbonate Case with impact resistant rubber boot, 1 meter drop tested
Splash and dust resistant keypad

SPECIFICATIONS

Supports any combination of four CWDM wavelengths as defined by ITU G. 694.2 recommendation
Wavelengths available: 1271, 1291, 1311, 1331, 1351, 1371, 1391, 1411, 1431, 1451, 1471, 1491, 1511, 1531, 1551, 1571, 1577, 1591 & 1611 nm
Channel spacing: 20 nm (ITU G.694.2 grid)
Wavelength accuracy: ± 3 nm
Linewidth: ± 0.5 nm
Modulation: 270 Hz, 330 Hz, 1 kHz and 2 KHz
Optical Isolation: 40 dB
SMSR: 35 dB minimum
Output Power:
- Min: > 0 dBM
- Max: +2 dBM
Laser Safety: Class 1 per IEC 60825-1:2014
