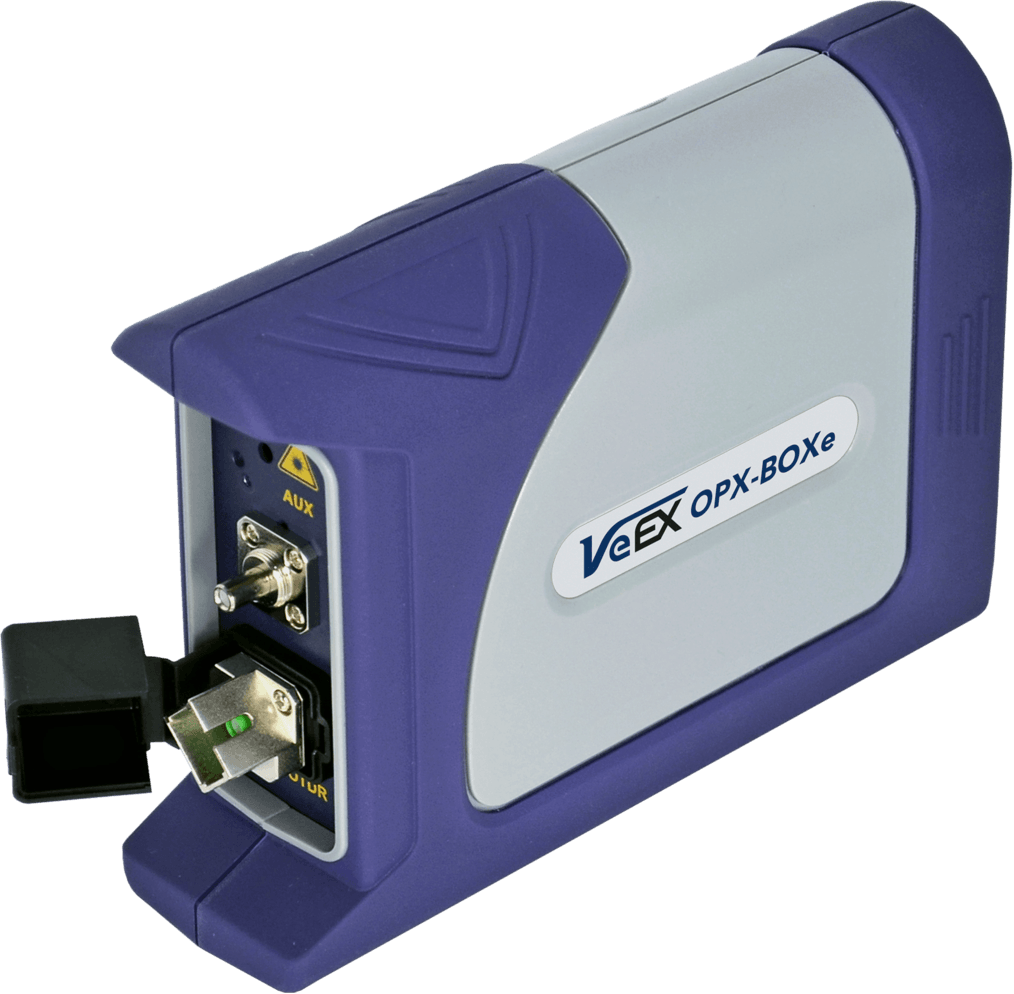

Compact OTDR - OPX BOX Plus

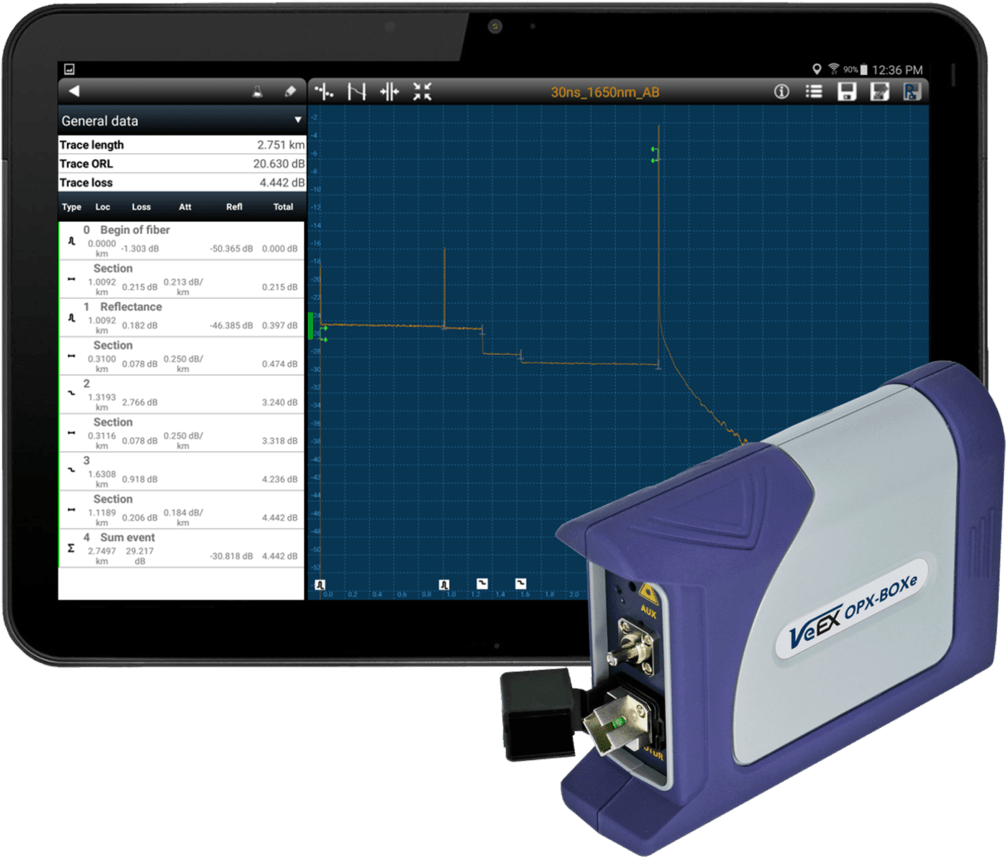

The OPX-BOX+ is an ultra-compact, OTDR designed to operate remotely using Fiberizer software. The unit can be controlled via USB or Bluetooth from Windows, MacOS, Linux or Android devices.

WiFi, Bluetooth wireless and USB control
Up to 3 wavelengths for OTDR testing including Live port (1625 nm, 1650 nm)
Up to 43 dB Dynamic Range and testing 1/4m Dead Zones
Optional Light Source (via OTDR port)
Optional Visual Fault Locator (VFL)
Multimode and Singlemode wavelength test options - 850, 1300, 1310, 1490, 1550, 1625 and 1650 nm
WiFi operation in Access Point or Client modes
BT BLE or PAN profile communication with BT devices including iPad/iPhone
VFL and OLS can be activated locally using a single button
Fixed and inter-changeable optical adaptors (SC/FC/ST/LC)
Ruggedized case and gap-free design protect the device from harsh and hazardous environments
