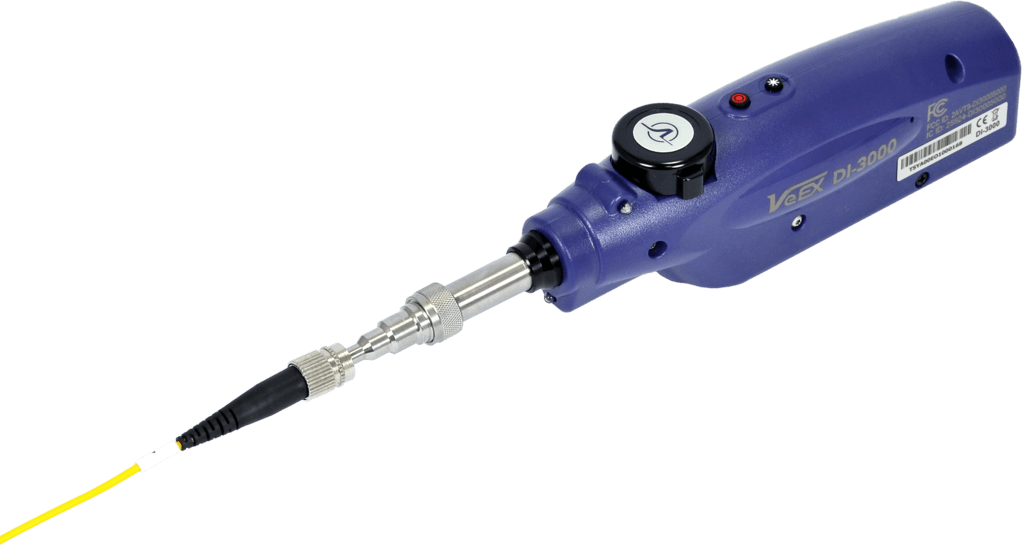

Auto-Focus Digital Fiber Inspection Microscope - VeEX DI-3000

WiFi connectivity enables tether-free operation with Android or Apple iOS mobile devices including select VeEX test platforms. USB operation is available for Windows PC applications or when WiFi use is prohibited. One-touch auto-focus along with powerful host software ensures fast, reliable connector inspection and endface analysis according to relevant IEC standards.

DATASHEET

Contact

Thông tin chi tiết sản phẩm

Đặc tính

HIGHLIGHT

One hand (left or right side), one touch operation
Wireless connectivity with host device via WiFi
Wired connectivity with host device via USB cable
Fast (2 - 4s), auto-focus image capture with focus indication
1/4” CMOS camera enabling 400x magnification
Compatible with a wide variety of VeEX host devices:
- Android mobile devices with Fiberizer® FMS software
- iOS mobile devices with Fiberizer FMiOS software
- Windows PCs equipped with Fiberizer Scope software
- VeEX test platforms equipped with USB or WiFi option* (MTTplus, TX300-Series, V150 series and RXT)
Built-in flashlight for use in dark lighting conditions
Blue LED light source for optimal end-face illumination
Self powered by built-in rechargeable Li-ion battery
4 – 5 hrs. runtime with autofocus**, 7 hrs. standby time
Convenient 5 Volt DC charging via Micro-USB interface
≤4 hrs. recharge time***
Inspect (male) and bulkhead (female) connectors
Wide range of tips for PC, UPC and APC end-face types
Weight including battery 178g

AUTO FOCUS DETECTION AND ANALYSIS

Probe automatically performs and detects optimal image focus

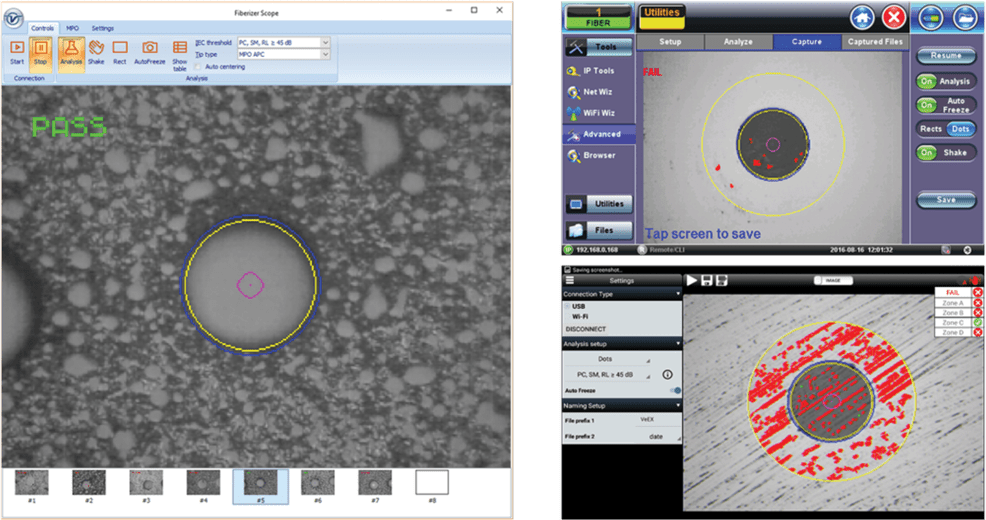

Focused image is automatically transferred to host device for viewing and Pass/Fail analysis per IEC 61300-3-35 standards
No human intervention necessary during image focus, transfer and analysis process
User can decide to manually refocus and recapture images as required
Report generation (html and PDF) directly from host device
Image compare function enables before/after inspection for cleaning purposes
