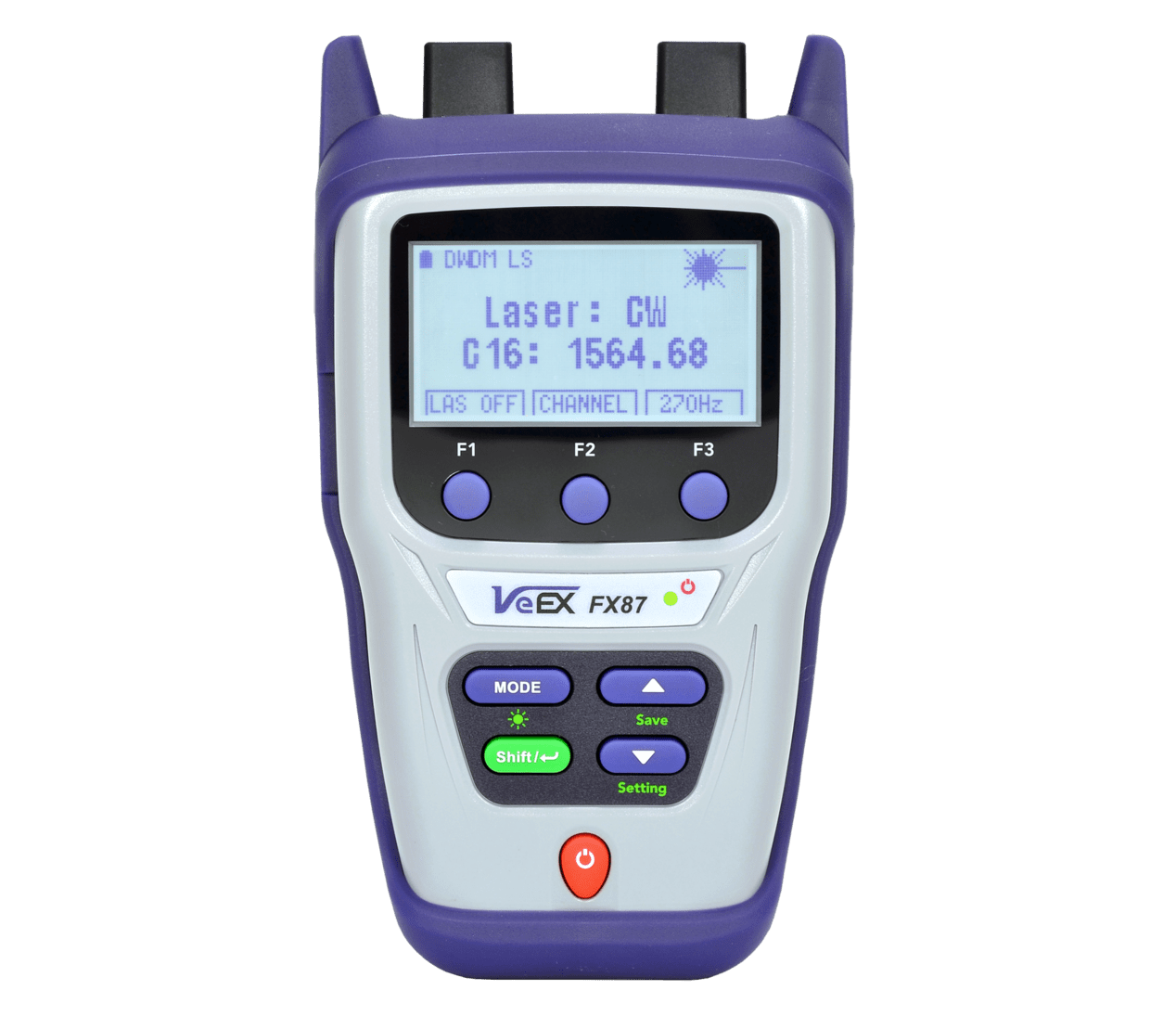

Máy phát công suất quang DWDM - FX87

HIGHLIGHT

• Low Cost, Hand Held Tunable DWDM Laser Source:
  • FX 87 Traditional Tunable OLS
  • FX87s Sweep Generator
• Fast Boot-up time and laser stabilization (< 5 seconds)
• Full C-Band tuning (> 80 channels @ 50 GHz spacing)
• Monochrome LCM, 128 x 64 pixels, LED backlight display
• Li-Polymer rechargeable battery, > 8 hours operation
• Rugged, polycarbonate case with impact resistant rubber boot, 1 meter drop tested
• Splash and dust resistant keypad
• Optional Broadband Optical Power Meter (OPM)
• Non-volatile storage for up to 1920 single wavelength result
• USB (wired) or optional Bluetooth (wireless) interface for test result transfer
• PC software for OPM data transfer and report generation
• Upload of stored results to VeEX R-Server workforce management system or Fiberizer® Cloud via LT-Sync PC software

SPECIFICATIONS


Tunable Source

• Wavelength Range: 1527.60 to 15666.31 nm
• Frequency Range: 191.40 to 196.25 THz
• 97 (or extra channel, 98 channels)
• Channel spacing: 50 GHz (ITU G.694.1 grid)
• Frequency accuracy: ± 2.5 GHz
• Linewidth: 10 MHz
• OSNR: 55 dB typical, SMSR: 35 dB minimum
• Built-in wavelength locker (stable to within ±2.5 GHz)
• Output Power: + 5 dBm (typical)
• Laser Safety: Class 1M per IEC 60825-1-2014

Optical Power Meter (Optional)

• Accuracy: ± 0.2 dB (5%)
• WaveID support (using compatible VeEX source)
• Display resolution: 0.01 dB
• Measurement range:
  • Standard (PM1) version: -65 to +10 dBm
  • High (PM2) version: -50 to +25 dBm
